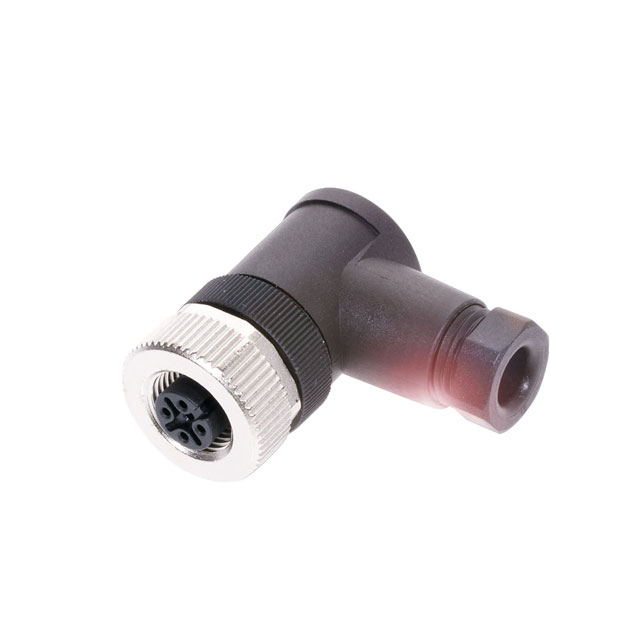

BCC06ZA

Manufacturer :

Balluff

Product Category :

Circular Connector Assemblies

Ingress Protection :

IP67 - Dust Tight, Waterproof

Minimum Operating Temperature :

-40°C

Shielding :

Unshielded

Contact Finish Thickness - Mating :

-

Contact Material :

Brass

Backshell Material, Plating :

Polyamide (PA), Nylon

Body Orientation :

RIGHT ANGLE

Insert Material :

Polyamide (PA), Nylon

Shell Finish :

-

Contact Gender :

FEMALE

Mounting Type :

Free Hanging (In-Line), Right Angle

Voltage Rating :

250 V ac/dc

Series :

-

Color :

Black, Silver

Current Rating (Amps) :

4A

Shell Size - Insert :

M12-4

Maximum Operating Temperature :

+85°C

Product Status :

Active

Connector Type :

Plug, Female Sockets

Shell Material :

Zinc Die Cast

Material Flammability Rating :

-

Applications :

-

Contact Finish - Mating :

-

IP Rating :

IP67

Operating Temperature :

-40°C ~ 85°C

Termination :

Screw

Mounting Feature :

-

Features :

Backshell, Coupling Nut

Number of Positions :

4

Primary Material :

Metal

Cable Opening :

0.157 ~ 0.236 (4.00mm ~ 6.00mm)

Current Rating :

4A

Model :

Female (bus)

Shell Size, MIL :

-

Package :

Bag

Orientation :

A

Coding :

A

Fastening Type :

Threaded

Number of Contacts :

5
