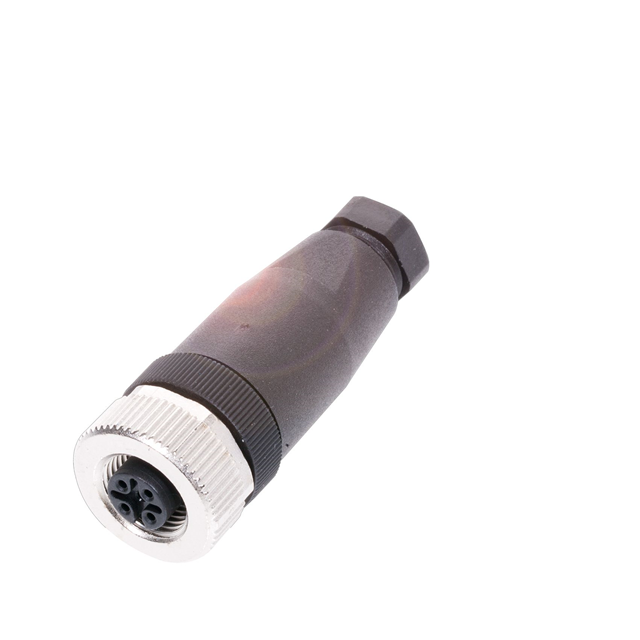

BCC06Z9

Manufacturer :

Balluff

Product Category :

Circular Connector Assemblies

Color :

Black, Silver

Current Rating :

4A

Features :

Backshell, Coupling Nut

IP Rating :

IP67

Number of Positions :

4

Shielding :

Unshielded

Body Orientation :

Straight

Termination :

Screw

Connector Type :

Plug, Female Sockets

Orientation :

A

Voltage Rating :

250 V ac/dc

Material Flammability Rating :

-

Contact Gender :

FEMALE

Current Rating (Amps) :

4A

Product Status :

Active

Backshell Material, Plating :

Polyamide (PA), Nylon

Series :

-

Shell Size - Insert :

M12-4

Ingress Protection :

IP67 - Dust Tight, Waterproof

Applications :

-

Operating Temperature :

-40°C ~ 85°C

Package :

Bag

Number of Contacts :

5

Contact Finish - Mating :

-

Shell Finish :

-

Model :

Female (bus)

Mounting Type :

Free Hanging (In-Line)

Maximum Operating Temperature :

+85°C

Fastening Type :

Threaded

Minimum Operating Temperature :

-25°C

Mounting Feature :

-

Cable Opening :

0.157 ~ 0.236 (4.00mm ~ 6.00mm)

Primary Material :

Metal

Shell Size, MIL :

-

Contact Finish Thickness - Mating :

-

Insert Material :

Polyamide (PA), Nylon

Shell Material :

Zinc Die Cast

Contact Material :

Brass

Coding :

A
