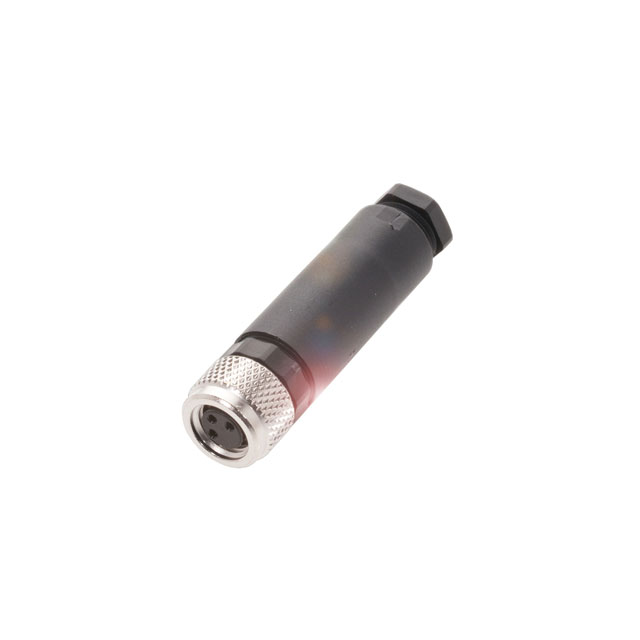

BCC06Z1

Manufacturer :

Balluff

Product Category :

Circular Connector Assemblies

Shielding :

Unshielded

Mount :

Screw

Mounting Feature :

-

Number of Contacts :

3

Mounting Type :

Cable Mount

Fastening Type :

Threaded

Coding :

A

Voltage Rating :

60VAC/DC

Contact Finish - Mating :

-

Orientation :

A

Contact Material :

Brass

Contact Finish Thickness - Mating :

-

Shell Material :

Brass

Insert Material :

Polyamide (PA), Nylon

Shell Finish :

-

Operating Temperature :

-40°C ~ 85°C

RoHS :

Compliant

Model :

Female (bus)

Shell Size, MIL :

-

Cable Opening :

0.138 ~ 0.197 (3.50mm ~ 5.00mm)

Applications :

-

Current Rating (Amps) :

4A

Connector Type :

Plug, Female Sockets

Color :

Black, Silver

Primary Material :

Metal

Material Flammability Rating :

-

Package :

Bag

Series :

-

Termination :

Screw

Number of Positions :

3

Shell Size - Insert :

M8-3

Ingress Protection :

IP67 - Dust Tight, Waterproof

Body Orientation :

Straight

Product Status :

Active

Termination Method :

Screw

Features :

Backshell, Coupling Nut

Backshell Material, Plating :

Polybutylene Terephthalate (PBT)

IP Rating :

IP67
