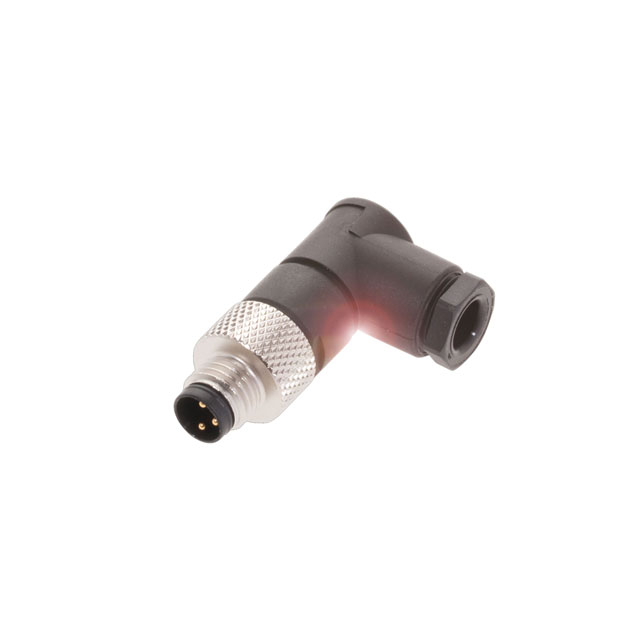

BCC06Z0

Manufacturer :

Balluff

Product Category :

Circular Connector Assemblies

Mounting Feature :

-

Shell Finish :

-

Shell Size, MIL :

-

Primary Material :

Metal

Mounting Type :

Cable Mount

Operating Temperature :

-40°C ~ 85°C

Coding :

A

Connector Type :

Receptacle, Male Pins

Body Orientation :

RIGHT ANGLE

Voltage Rating :

60VAC/DC

Shell Size - Insert :

M8-3

Orientation :

A

IP Rating :

IP67

Contact Material :

Brass

Fastening Type :

Threaded

Number of Contacts :

3

Current Rating (Amps) :

4A

Package :

Bag

Features :

Backshell

Series :

-

Applications :

-

Material Flammability Rating :

-

Contact Finish - Mating :

-

Product Status :

Active

Cable Opening :

0.138 ~ 0.197 (3.50mm ~ 5.00mm)

Shell Material :

Brass

Contact Finish Thickness - Mating :

-

Number of Positions :

3

RoHS :

Compliant

Color :

Black, Silver

Termination Method :

Screw

Shielding :

Unshielded

Model :

Male (plug)

Termination :

Solder Cup

Backshell Material, Plating :

Polybutylene Terephthalate (PBT)

Insert Material :

Polyamide (PA), Nylon

Ingress Protection :

IP67 - Dust Tight, Waterproof
