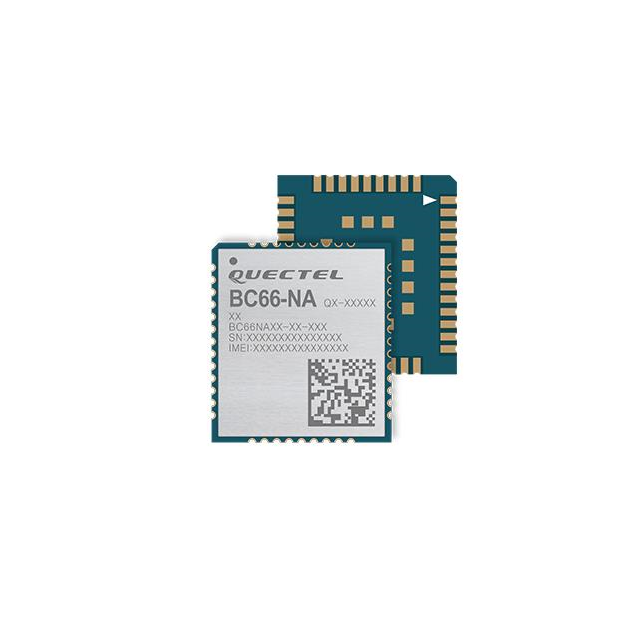

BC66NADA-04-STD

Manufacturer :

Quectel

Product Category :

RF Transceiver Modules and Modems

Antenna Type :

Antenna Not Included

Interface Type :

ADC, GPIO, I2C, I2S, SPI, UART, USB

Base Product Number :

BC66

Current - Receiving :

-

Utilized IC / Part :

-

Current - Transmitting :

-

Packaging :

Cut Tape

Frequency Range :

700/800/850/900/1700/1800/1900/2100 MHz

Package / Case :

Module

Operating Temperature :

-40 to 85 °C

Screening Level :

Extended

Package :

Tape and Reel (TR);Cut Tape (CT);Digi-Reel®;

Series :

-

Serial Interfaces :

ADC, UART, USB

RF Family/Standard :

Cellular

Power - Output :

23dBm

Modulation :

-

Tradename :

Wireless communication module

Mounting :

Surface Mount

Antenna Connector Type :

-

Maximum Operating Temperature :

+ 75 C

Voltage - Supply :

2.1V ~ 3.63V

Type :

LTE Cat NB1 Module

Memory Size :

-

Dimensions :

17.7 mm x 15.8 mm x 2 mm

RoHS :

Details

Product Status :

Last Time Buy

Minimum Operating Temperature :

- 30 C

Protocol :

GPRS, GSM, LTE

Frequency :

-

Operating Supply Voltage :

3.3 V

Mounting Type :

Surface Mount

Output Power :

23 dBm

Data Rate :

62.5 kbps

Sensitivity :

-129 dBm
