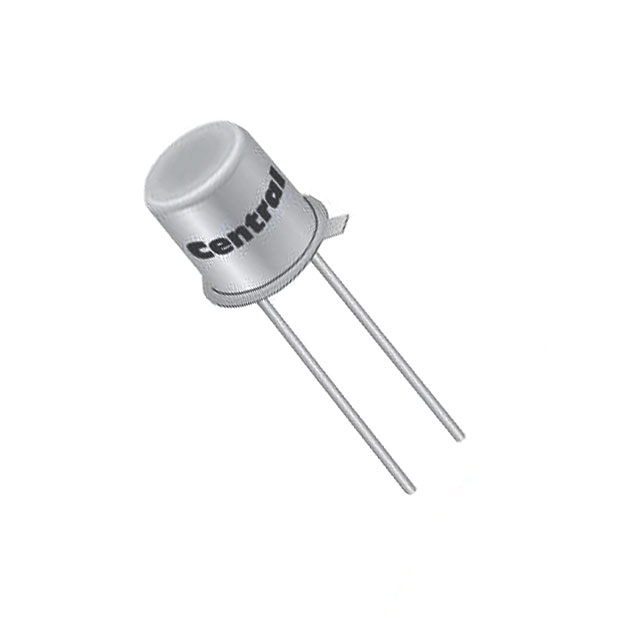

BAV45

Manufacturer :

Central Semiconductor

Product Category :

Diodes - Rectifiers - Single

Output Current-Max :

0.05A

Published :

2016

Terminal Position :

BOTTOM

Terminal Form :

Wire

Voltage - DC Reverse (Vr) (Max) :

20V

JESD-30 Code :

O-MBCY-W2

ECCN Code :

EAR99

Package / Case :

TO-18-2

Pbfree Code :

No

Number of Terminations :

2

Max Reverse Voltage (DC) :

20V

Current - Reverse Leakage @ Vr :

5pA @ 5V

Voltage - Forward (Vf) (Max) @ If :

1V @ 10mA

Speed :

Small Signal =< 200mA (Io), Any Speed

Time@Peak Reflow Temperature-Max (s) :

NOT SPECIFIED

HTS Code :

8541.10.00.70

Capacitance @ Vr, F :

1.3pF @ 0V 1MHz

Packaging :

Bulk

Average Rectified Current :

50mA

Operating Temperature - Junction :

-65°C~125°C

Operating Temperature (Max) :

125°C

Qualification Status :

Not Qualified

Diode Type :

Standard

Configuration :

Single

Reverse Recovery Time :

600 ns

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Mount :

Through Hole

Peak Reflow Temperature (Cel) :

NOT SPECIFIED

Mounting Type :

Through Hole

JESD-609 Code :

e0

Terminal Finish :

Tin/Lead (Sn/Pb)

Number of Elements :

1

RoHS Status :

RoHS Compliant

Diode Element Material :

SILICON
