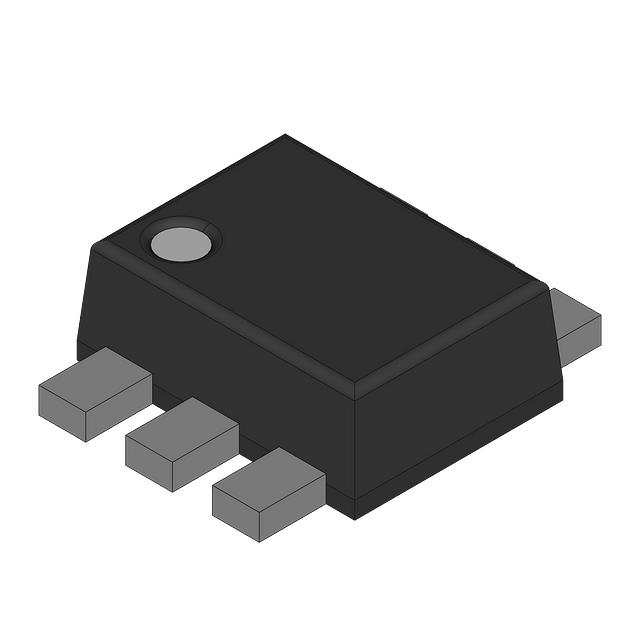

BAT74V115
Or copy the link below:
- Mfr.Part #
- BAT74V115
- Manufacturer
- NXP Semiconductors
- Package / Case
- SOT-563, SOT-666
- Datasheet
- Download
- Description
- NOW NEXPERIA BAT74V - RECTIFIER
- Stock
- 48,623
- In Stock ：
- 48,623
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- NXP Semiconductors
- Product Category :
- Specialized ICs
- Max Reverse Voltage (DC) :
- 30V
- Max Repetitive Reverse Voltage (Vrrm) :
- 30V
- Peak Non-Repetitive Surge Current :
- 600mA
- Current - Reverse Leakage @ Vr :
- 2μA @ 25V
- Max Forward Surge Current (Ifsm) :
- 600mA
- Diode Element Material :
- SILICON
- JESD-609 Code :
- e3
- Peak Reflow Temperature (Cel) :
- 260
- Terminal Form :
- Flat
- Forward Voltage :
- 800mV
- Power Dissipation-Max :
- 0.23W
- Number of Terminations :
- 6
- Package / Case :
- SOT-563, SOT-666
- ECCN Code :
- EAR99
- Terminal Position :
- Dual
- Average Rectified Current :
- 200mA
- Mounting Type :
- Surface Mount
- RoHS Status :
- ROHS3 Compliant
- Factory Lead Time :
- 4 Weeks
- Mount :
- Surface Mount
- Time@Peak Reflow Temperature-Max (s) :
- 40
- Pin Count :
- 6
- Current - Average Rectified (Io) :
- 200mA DC
- Published :
- 2009
- Output Current-Max :
- 0.2A
- Voltage - Forward (Vf) (Max) @ If :
- 800mV @ 100mA
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- HTS Code :
- 8541.10.00.70
- Radiation Hardening :
- No
- Number of Elements :
- 2
- Operating Temperature - Junction :
- 125°C Max
- Peak Reverse Current :
- 2µA
- Diode Configuration :
- 2 Independent
- Speed :
- Small Signal =< 200mA (Io), Any Speed
- Forward Current :
- 200mA
- Contact Plating :
- Tin
- Diode Type :
- Schottky
- Packaging :
- Tape and Reel (TR)
- Max Operating Temperature :
- 125°C
- Number of Pins :
- 6
- Datasheets
- BAT74V115
BAT74V115 Documents
Specialized ICs NXP Semiconductors BAT74V115 Overview
The Specialized ICs NXP Semiconductors BAT74V115 is a high-performance Schottky rectifier diode designed for advanced electronic applications. This compact, surface-mount device is built for efficiency with a dual-diode configuration that allows for seamless integration into various circuit designs. It operates effectively within a temperature range up to 125°C, making it ideal for challenging environments. With a forward voltage of only 800mV, it provides excellent power efficiency, while its capability to handle a continuous forward current of up to 200mA and a reverse voltage peak of 30V ensures reliability and longevity in demanding applications.
Specialized ICs NXP Semiconductors BAT74V115 Key Features
800mV forward voltage
200mA maximum continuous forward current
30V reverse voltage peak
These features contribute to its robust performance in power-sensitive applications.
Specialized ICs NXP Semiconductors BAT74V115 Applications
The Specialized ICs NXP Semiconductors BAT74V115 is versatile for a wide range of applications, including:
- Rectifier for drive applications
- Crowbar circuits
- USB rectification
- Battery chargers
- Rectifiers in switch mode power supplies (SMPS)
- Free wheeling diodes in low voltage converters
- General rectification purposes
