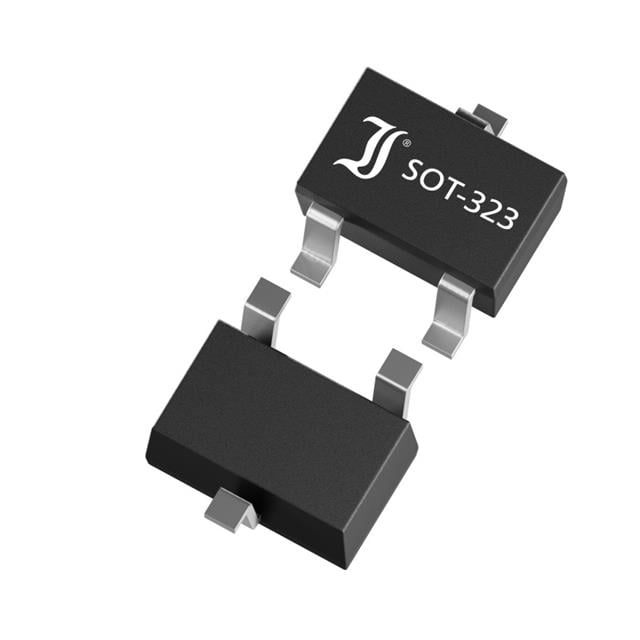

BAT54CW

Manufacturer :

Diotec Semiconductor

Product Category :

Diodes - Rectifiers - Arrays

JESD-609 Code :

e3

Power Dissipation-Max :

0.2W

Diode Element Material :

SILICON

Capacitance @ Vr, F :

10pF @ 1V 1MHz

Mounting Type :

Surface Mount

Number of Terminations :

3

Current - Reverse Leakage @ Vr :

2μA @ 25V

Current - Average Rectified (Io) :

200mA DC

JESD-30 Code :

R-PDSO-G3

Series :

Automotive, AEC-Q101

Diode Type :

Schottky

Configuration :

COMMON CATHODE, 2 ELEMENTS

Factory Lead Time :

4 Weeks

Number of Elements :

2

Pin Count :

3

Terminal Form :

Gull wing

Voltage - DC Reverse (Vr) (Max) :

30V

Reference Standard :

AEC-Q101; IEC-60134

Rep Pk Reverse Voltage-Max :

30V

RoHS Status :

ROHS3 Compliant

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Reverse Recovery Time :

5ns

Terminal Position :

Dual

Operating Temperature - Junction :

150°C Max

Terminal Finish :

Tin (Sn)

Packaging :

Tape and Reel (TR)

Speed :

Small Signal =< 200mA (Io), Any Speed

Voltage - Forward (Vf) (Max) @ If :

800mV @ 100mA

Output Current-Max :

0.2A

Operating Temperature (Max) :

150°C

Package / Case :

SC-70, SOT-323

Surface Mount :

yes
