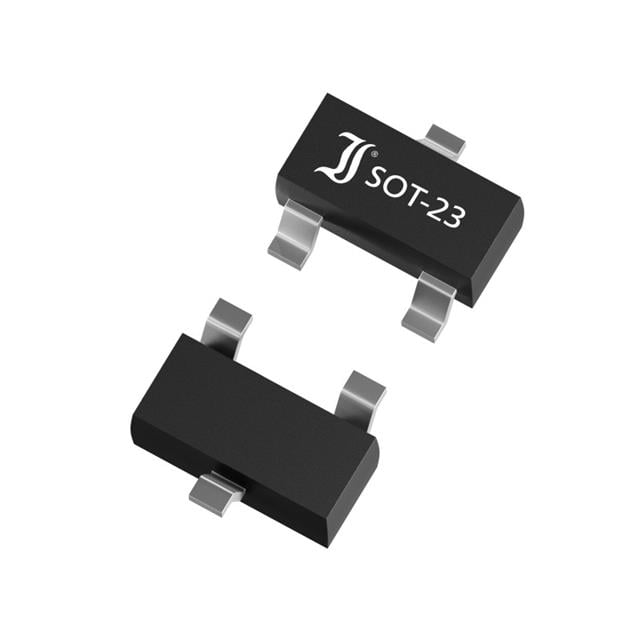

BAT54C

Manufacturer :

Diotec Semiconductor

Product Category :

Diodes - Rectifiers - Arrays

JESD-30 Code :

R-PDSO-G3

Terminal Finish :

Tin (Sn)

Current - Reverse Leakage @ Vr :

2mA @ 25V

Mounting Type :

Surface Mount

Number of Elements :

2

Number of Terminations :

3

Diode Type :

Schottky

ECCN Code :

EAR99

Operating Temperature (Max) :

125°C

Operating Temperature - Junction :

125°C Max

Number of Phases :

1

Application :

FAST RECOVERY

HTS Code :

8541.10.00.70

Base Part Number :

BAT54C

Recovery Time :

5 ns

Reverse Current-Max :

2000μA

Package / Case :

TO-236-3, SC-59, SOT-23-3

Factory Lead Time :

10 Weeks

Packaging :

Tape and Reel (TR)

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Terminal Form :

Gull wing

Max Power Dissipation :

225mW

Speed :

Small Signal =< 200mA (Io), Any Speed

Diode Configuration :

1 Pair Common Cathode

Mount :

Surface Mount

Terminal Position :

Dual

Max Reverse Voltage (DC) :

30V

Current - Average Rectified (Io) :

200mA DC

Non-rep Pk Forward Current-Max :

0.6A

Element Configuration :

Common Cathode

Reverse Test Voltage :

25V

Voltage - Forward (Vf) (Max) @ If :

1V @ 100mA

Diode Element Material :

SILICON

JESD-609 Code :

e3

Average Rectified Current :

200mA

Reverse Recovery Time :

5 ns

Output Current-Max :

0.2A

RoHS Status :

ROHS3 Compliant
