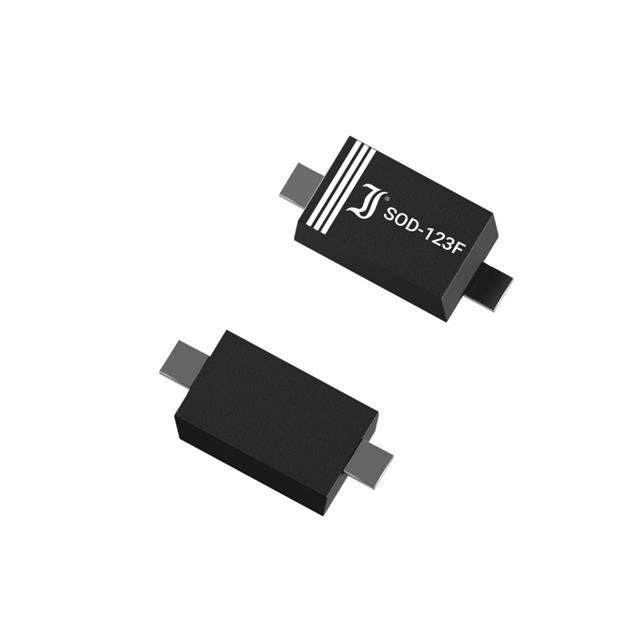

BAT46W

Manufacturer :

Diotec Semiconductor

Product Category :

Diodes - Rectifiers - Single

Mounting Type :

Surface Mount

Package / Case :

SOD-123

Min Operating Temperature :

-55°C

Weight :

10.007382mg

Capacitance @ Vr, F :

20pF @ 0V 1MHz

Length :

2.85mm

Contact Plating :

Tin

Radiation Hardening :

No

Time@Peak Reflow Temperature-Max (s) :

40

Packaging :

Tape and Reel (TR)

Forward Voltage :

1V

Output Current-Max :

0.15A

Surface Mount :

yes

Max Operating Temperature :

125°C

RoHS Status :

ROHS3 Compliant

HTS Code :

8541.10.00.70

Pbfree Code :

yes

Series :

Automotive, AEC-Q101

Power Dissipation :

200mW

Power Rating :

200mW

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Lead Free :

Lead Free

Diode Element Material :

SILICON

Average Rectified Current :

150mA

REACH SVHC :

No SVHC

Current - Average Rectified (Io) :

150mA DC

Forward Current :

150mA

Max Repetitive Reverse Voltage (Vrrm) :

100V

Pin Count :

2

Current - Reverse Leakage @ Vr :

2μA @ 75V

Terminal Form :

Gull wing

Diode Type :

Schottky

JESD-609 Code :

e3

Number of Elements :

1

Peak Non-Repetitive Surge Current :

750mA

Terminal Position :

Dual

Width :

1.7mm

Number of Pins :

2

Peak Reverse Current :

2µA

Number of Terminations :

2

Operating Temperature - Junction :

-55°C~125°C

Element Configuration :

Single

Peak Reflow Temperature (Cel) :

260

ECCN Code :

EAR99

Base Part Number :

BAT46W

Max Forward Surge Current (Ifsm) :

750mA

Height :

1.25mm

Voltage - Forward (Vf) (Max) @ If :

450mV @ 10mA

Factory Lead Time :

15 Weeks

Speed :

Small Signal =< 200mA (Io), Any Speed

Max Reverse Voltage (DC) :

100V
