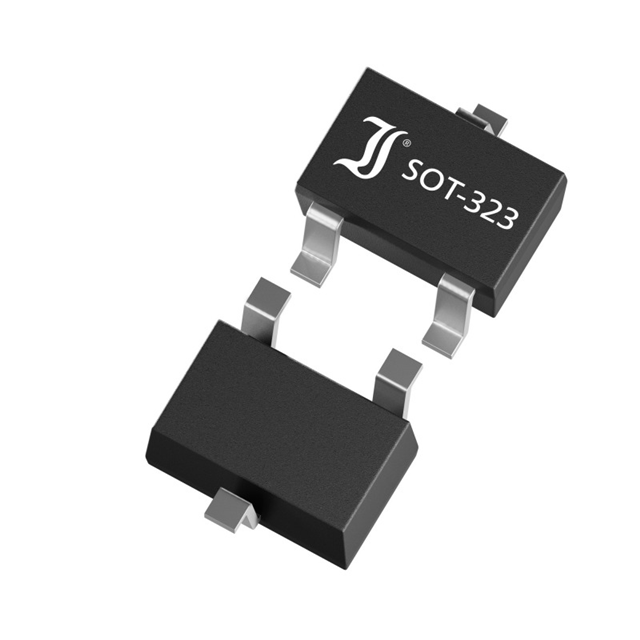

BAS70-04W

Manufacturer :

Diotec Semiconductor

Product Category :

Diodes - Rectifiers - Arrays

Mounting Type :

Surface Mount

Output Current-Max :

0.07A

Pin Count :

3

Operating Temperature (Max) :

150°C

Package / Case :

SC-70, SOT-323

Configuration :

SERIES CONNECTED, CENTER TAP, 2 ELEMENTS

Operating Temperature - Junction :

150°C Max

Terminal Position :

Dual

Current - Average Rectified (Io) :

70mA DC

Reference Standard :

IEC-60134

Surface Mount :

yes

Voltage - DC Reverse (Vr) (Max) :

70V

Rep Pk Reverse Voltage-Max :

70V

Speed :

Small Signal =< 200mA (Io), Any Speed

Diode Type :

Schottky

Voltage - Forward (Vf) (Max) @ If :

1V @ 15mA

Factory Lead Time :

4 Weeks

RoHS Status :

ROHS3 Compliant

Number of Elements :

2

Number of Terminations :

3

Current - Reverse Leakage @ Vr :

10μA @ 70V

JESD-30 Code :

R-PDSO-G3

Terminal Form :

Gull wing

Packaging :

Tape and Reel (TR)

Diode Element Material :

SILICON

Capacitance @ Vr, F :

2pF @ 0V 1MHz
