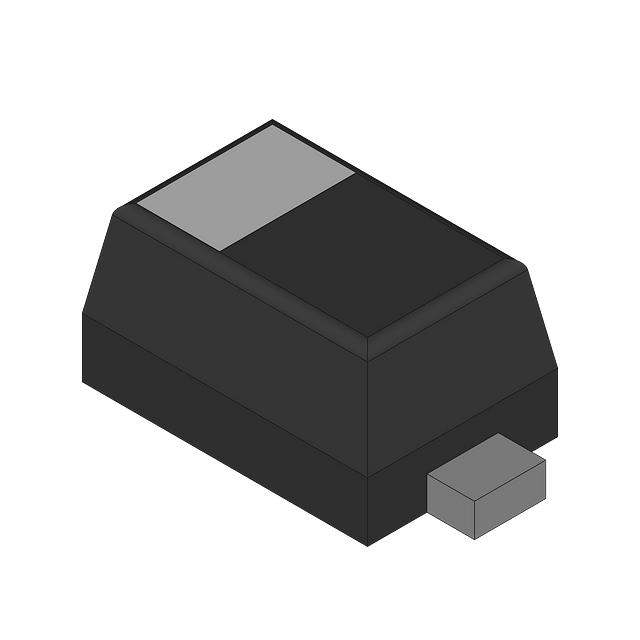

BAS516115

Manufacturer :

NXP Semiconductors

Product Category :

Specialized ICs

Max Junction Temperature (Tj) :

150°C

Current - Average Rectified (Io) :

250mA DC

Terminal Position :

Dual

Reverse Recovery Time :

4ns

Capacitance :

1pF

Reverse Voltage :

100V

Factory Lead Time :

4 Weeks

Series :

Automotive, AEC-Q101, BAS16

Height :

650μm

Current - Reverse Leakage @ Vr :

500nA @ 80V

Package / Case :

SC-79, SOD-523

JESD-609 Code :

e3

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Power Dissipation-Max :

0.5W

Max Repetitive Reverse Voltage (Vrrm) :

100V

Diode Type :

Standard

Number of Elements :

1

Peak Reverse Current :

50μA

ECCN Code :

EAR99

Pin Count :

2

Surface Mount :

yes

Ambient Temperature Range High :

150°C

Speed :

Fast Recovery =< 500ns, > 200mA (Io)

Number of Terminations :

2

Capacitance @ Vr, F :

1pF @ 0V 1MHz

HTS Code :

8541.10.00.70

Diode Element Material :

SILICON

Voltage - Forward (Vf) (Max) @ If :

1.25V @ 150mA

Peak Reflow Temperature (Cel) :

260

Mounting Type :

Surface Mount

Forward Current :

250mA

Base Part Number :

BAS516

Terminal Form :

Flat

Operating Temperature - Junction :

150°C Max

Time@Peak Reflow Temperature-Max (s) :

30

Packaging :

Tape and Reel (TR)

Max Forward Surge Current (Ifsm) :

4A

Qualification Status :

Not Qualified

Number of Pins :

2

Configuration :

Single

Terminal Finish :

Tin (Sn)

RoHS Status :

ROHS3 Compliant
