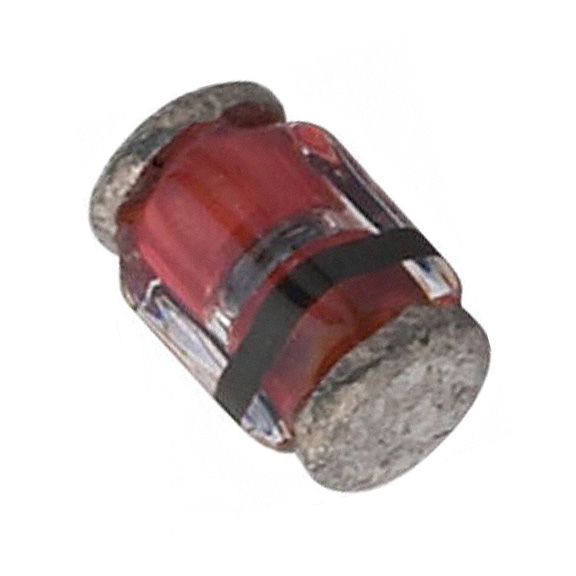

BAS385-TR

Manufacturer :

Vishay

Product Category :

Diodes - Rectifiers - Single

Peak Reverse Current :

2.3μA

Max Repetitive Reverse Voltage (Vrrm) :

30V

Average Rectified Current :

200mA

Diode Element Material :

SILICON

Max Forward Surge Current (Ifsm) :

5A

Case Connection :

Isolated

Forward Voltage :

800mV

Operating Temperature - Junction :

125°C Max

Factory Lead Time :

13 Weeks

Capacitance @ Vr, F :

10pF @ 1V 1MHz

HTS Code :

8541.10.00.70

RoHS Status :

ROHS3 Compliant

Terminal Finish :

Tin/Silver (Sn/Ag)

JESD-609 Code :

e2

Base Part Number :

BAS385

Number of Pins :

2

Current Rating :

200mA

Number of Elements :

1

Min Operating Temperature :

-65°C

Terminal Form :

WRAP AROUND

Speed :

Small Signal =< 200mA (Io), Any Speed

Max Surge Current :

5A

Capacitance :

10pF

Diode Type :

Schottky

Terminal Position :

END

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Package / Case :

2-SMD, No Lead

Voltage - Forward (Vf) (Max) @ If :

800mV @ 100mA

Max Reverse Leakage Current :

2.3μA

Mount :

Surface Mount

Packaging :

Tape and Reel (TR)

Radiation Hardening :

No

Element Configuration :

Single

Length :

2mm

Forward Current :

200mA

Mounting Type :

Surface Mount

Peak Non-Repetitive Surge Current :

5A

Natural Thermal Resistance :

320 °C/W

ECCN Code :

EAR99

Width :

1.2mm

Current - Reverse Leakage @ Vr :

2.3μA @ 25V

Pbfree Code :

yes

Number of Terminations :

2

Max Operating Temperature :

125°C

Height :

1.2mm

Max Junction Temperature (Tj) :

125°C

Contact Plating :

Silver, Tin

Max Reverse Voltage (DC) :

30V

Lead Free :

Lead Free

REACH SVHC :

Unknown

Pin Count :

2

Reverse Voltage :

30V
