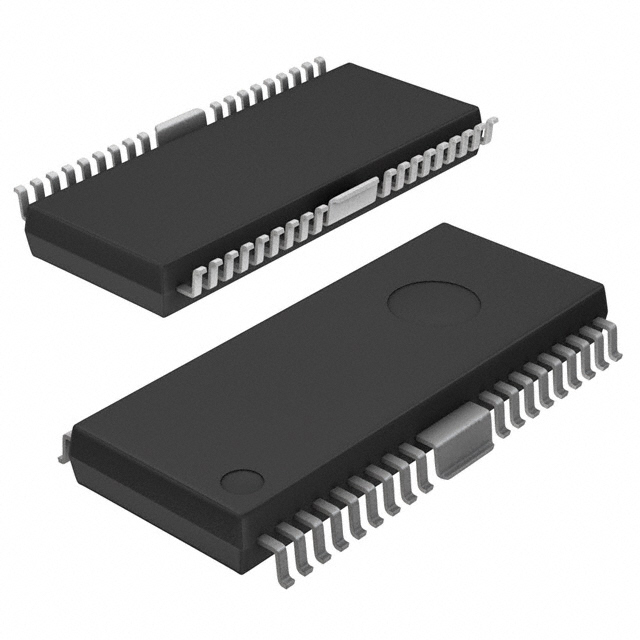

BA5956FM-E2

Manufacturer :

ROHM Semiconductor

Product Category :

Full Half-Bridge Drivers

Pin Count :

36

Number of Functions :

1

Load Type :

Inductive

Package / Case :

36-SOP (0.295, 7.50mm Width) + 2 Heat Tabs

Mount :

Surface Mount

Logic Function :

AND

Number of Pins :

38

Length :

18.5mm

JESD-30 Code :

R-PDSO-G36

Packaging :

Tape and Reel (TR)

Number of Channels :

5

Qualification Status :

Not Qualified

Published :

2016

RoHS Status :

ROHS3 Compliant

Fault Protection :

Over Temperature, UVLO

Operating Temperature :

-35°C~85°C TA

Number of Terminations :

36

Terminal Form :

Gull wing

Supply Voltage :

12V

Base Part Number :

BA5956

Terminal Position :

Dual

Pbfree Code :

yes

Applications :

DC Motors, General Purpose

Moisture Sensitivity Level (MSL) :

2 (1 Year)

Peak Reflow Temperature (Cel) :

NOT SPECIFIED

Factory Lead Time :

5 Weeks

Drive Type :

Optical

Voltage - Supply :

4.5V~14V

Time@Peak Reflow Temperature-Max (s) :

NOT SPECIFIED

Contact Plating :

Copper, Tin

HTS Code :

8542.39.00.01

Mounting Type :

Surface Mount

Output Configuration :

Half Bridge (10)

Interface :

Logic

Terminal Pitch :

0.8mm

Height Seated (Max) :

2.4mm

Width :

7.5mm
