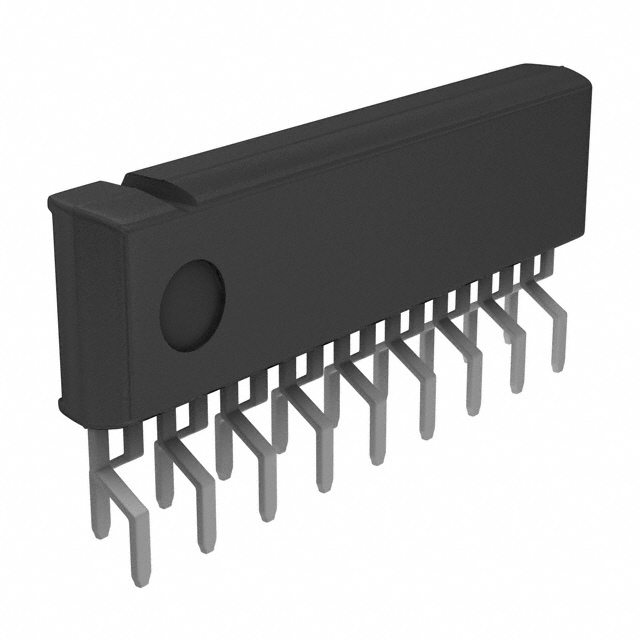

BA3812L
Or copy the link below:
- Mfr.Part #
- BA3812L
- Manufacturer
- ROHM Semiconductor
- Package / Case
- 18-SSIP Formed Leads
- Datasheet
- Download
- Description
- IC AUDIO TONE PROCESSOR 18ZIP
- Stock
- 24,605
- In Stock ：
- 24,605
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- ROHM Semiconductor
- Product Category :
- Audio Special Purpose
- Function :
- Audio Tone Processor
- Pbfree Code :
- yes
- Packaging :
- Tube
- Interface :
- Analog
- JESD-609 Code :
- e3/e2
- Package / Case :
- 18-SSIP Formed Leads
- Terminal Finish :
- TIN/TIN COPPER
- Applications :
- Automotive Audio, Consumer Audio
- Qualification Status :
- Not Qualified
- Width :
- 2.8mm
- Time@Peak Reflow Temperature-Max (s) :
- 10
- Number of Terminations :
- 18
- ECCN Code :
- EAR99
- Operating Temperature :
- -25°C~75°C TA
- Consumer IC Type :
- EQUALIZER CIRCUIT
- Number of Bands :
- 1
- Peak Reflow Temperature (Cel) :
- 260
- Base Part Number :
- BA3812
- JESD-30 Code :
- R-PZIP-T18
- Height Seated (Max) :
- 8.4mm
- Power Supplies :
- 8V
- Voltage - Supply :
- 3.5V~16V
- Published :
- 1999
- Harmonic Distortion :
- 0.01%
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Length :
- 21.8mm
- Number of Channels :
- 5
- Mounting Type :
- Through Hole
- Terminal Pitch :
- 1.27mm
- Supply Voltage-Max (Vsup) :
- 16V
- Terminal Position :
- Zig-Zag
- RoHS Status :
- ROHS3 Compliant
- Surface Mount :
- No
- Lead Free :
- Lead Free
- Datasheets
- BA3812L
Audio Special Purpose ROHM Semiconductor BA3812L Overview
The BA3812L, developed by ROHM Semiconductor, is an integrated circuit designed specifically for advanced audio tone processing. This component finds its utility in a broad range of audio applications, due to its robust feature set which includes dual channel operation and a wide supply voltage range. It is especially suited for enhancing audio fidelity and adjusting tones in various devices, ensuring optimal sound quality through its advanced signal processing capabilities. The BA3812L's sophisticated design and reliable performance make it a preferred choice for manufacturers looking to improve audio outputs in their high-end audio equipment. With the Audio Special Purpose ROHM Semiconductor BA3812L, engineers and designers gain access to superior tone management that can significantly elevate user audio experiences.
BA3812L Features
The BA3812L audio tone processor IC encompasses several notable features making it adaptable and effective for high-quality audio applications. It includes a 5-band graphic equalizer, dual channel operation which allows independent audio processing on two separate channels, thereby enhancing stereo sound effects. The IC also supports a wide power supply range from 3.5V to 9.5V, providing versatility across different electronic products. Additionally, its low noise and low distortion specifications ensure clean, clear audio output, essential for high-fidelity audio applications.
BA3812L Applications
- Home Audio Systems: Integrates into amplifiers and receivers to provide customizable audio settings, enhancing user experience with tailored sound profiles.
- Car Audio Systems: Used in vehicle audio systems to adjust sound frequencies and improve audio clarity, offering a better listening environment in the diverse acoustic spaces of cars.
- Television Sets: Applies its tone processing capabilities to TVs, ensuring that sound output is well-balanced and clear, thus enhancing the overall audiovisual experience.
- Portable Audio Devices: Employs in portable speakers and headphones, allowing for on-the-go tone adjustments which elevate the quality of music and spoken audio content.
- Professional Audio Equipment: Facilitates refined tone control in professional sound systems used in concert halls and theaters, providing superior sound management capabilities to audio engineers.
