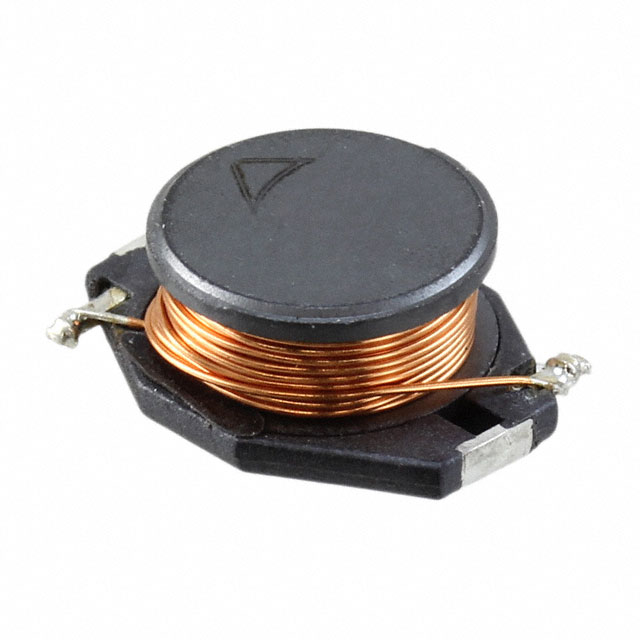

B82476B1334M100

Manufacturer :

EPCOS (TDK)

Product Category :

Fixed Inductors

Terminal Shape :

WRAPAROUND

Ratings :

AEC-Q200

Q @ Freq :

--

Packing Method :

TR, BLISTER, 13 INCH

Type :

Wirewound

Packaging :

Cut Tape

DC Resistance (DCR) :

810 mOhm Max

Tolerance :

20%

Number of Functions :

1

Current - Saturation :

600mA

Inductance :

330 µH

Construction :

RECTANGULAR

Height Seated (Max) :

5.08mm

Length :

12.954mm

Terminal Placement :

DUAL ENDED

DC Current :

650mA

Series :

B82476B1

Number of Terminations :

2

Mount :

Surface Mount

HTS Code :

8504.50.80.00

Current Rating :

650mA

Width :

9.398mm

Size / Dimension :

0.510 L x 0.370 W (12.95mm x 9.40mm)

Package / Case :

Nonstandard

Max Operating Temperature :

150°C

Reach Compliance Code :

Unknown

Operating Temperature :

-55°C ~ 150°C

Min Operating Temperature :

-55°C

Material - Core :

Ferrite

Shielding :

Unshielded

Frequency - Self Resonant :

--

Shape/Size Description :

RECTANGULAR PACKAGE

Test Frequency :

100kHz

Depth :

9.4mm

RoHS Status :

RoHS Compliant

Supplier Device Package :

--

RMS Current (Irms) :

650mA

Max DC Current :

650mA

Composition :

Wirewound

Case/Size Code :

5137

Inductance Frequency - Test :

100kHz

REACH SVHC :

No SVHC

Inductance-Nom (L) :

330 µH

Military Standard :

Not

Height - Seated (Max) :

0.200 (5.08mm)

ECCN Code :

EAR99

Lifecycle Status :

Production (Last Updated: 2 months ago)

Inductor Type :

GENERAL PURPOSE INDUCTOR

Inductance Tolerance :

20%

Inductor Application :

POWER INDUCTOR

DC Resistance (DCR) - Parallel :

810mOhm

Mounting Type :

Surface Mount
