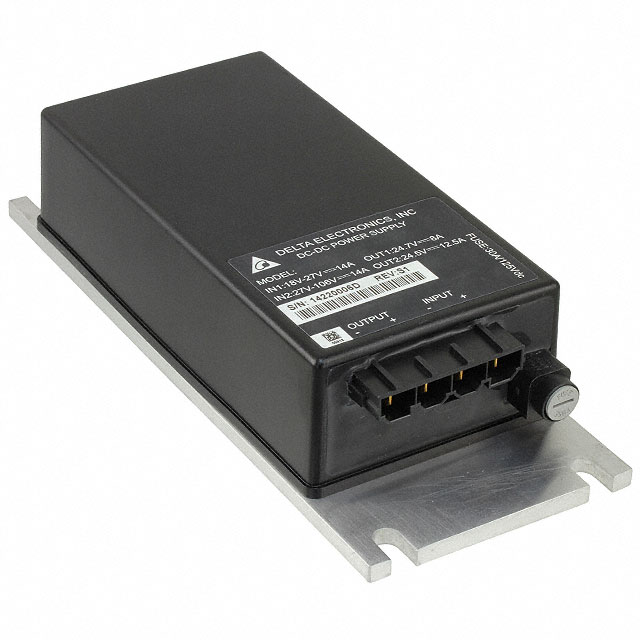

B70SR12424A

Manufacturer :

Delta Electronics

Product Category :

Power (Watts) :

298W

Max Input Voltage (DC) :

106V

Operating Temperature :

-40°C~75°C

Package / Case :

Module

Min Input Voltage (DC) :

36V

Max Operating Temperature :

75°C

Series :

B70SR (300W)

Voltage - Output 1 :

12.4V

Output Current :

24A

Max Power Dissipation :

300W

Current - Output (Max) :

24A

Size / Dimension :

7.48Lx2.99W x 1.73 H 190.0mmx75.9mmx43.9mm

Mounting Type :

Chassis Mount

Min Operating Temperature :

-40°C

Length :

189.992mm

Height :

43.434mm

Factory Lead Time :

16 Weeks

Approval Agency :

CE, UL

Number of Outputs :

1

Mount :

Chassis, Chassis Mount

Voltage - Input (Max) :

106V

Width :

75.946mm

Lead Free :

Lead Free

Type :

Enclosed

Applications :

ITE (Commercial)

Voltage - Input (Min) :

36V

Efficiency :

90%

Max Output Current :

24A

RoHS Status :

ROHS3 Compliant

Current - Output 1 :

24A

Output Voltage :

12.4V

Output Power :

300W

Packaging :

Bulk

Moisture Sensitivity Level (MSL) :

1 (Unlimited)
