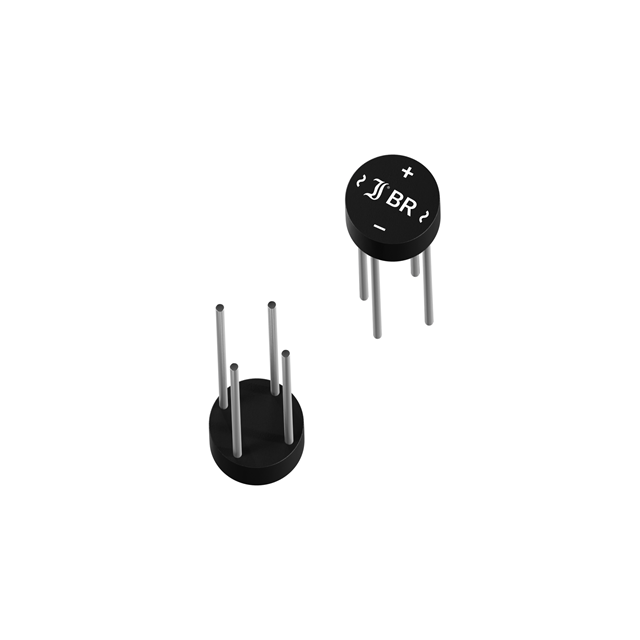

B40R

Manufacturer :

Diotec Semiconductor

Product Category :

Diodes - Bridge Rectifiers

Avg. Forward Curr (Max) :

2(A)

Military :

No

Bridge Type :

Single Phase

Rad Hardened :

No

Operating Temp Range :

-50C to 150C

Phase Type :

Single Phase

Configuration :

Single

Minimum Operating Temperature (°C) :

-50

Peak RMS Reverse Voltage (V) :

40

Number of Elements :

1

Peak Average Forward Current (A) :

2

Pin Count :

4

Operating Temperature Classification :

Automotive

RMS Voltage (Max) :

40(V)

Rev Curr :

5(mA)

Peak Reverse Recovery Time (ns) :

1500(Typ)

Packaging :

Box

Diameter :

9

Peak Reverse Current (uA) :

5

Mounting :

Through Hole

Peak Reverse Repetitive Voltage (V) :

80

Package Height :

5.1

RoHS Status :

Yes with exemptions

Forward Voltage :

1(V)

Maximum Operating Temperature (°C) :

150

PCB changed :

4

Peak Forward Voltage (V) :

1@1A

ECCN (US) :

EAR99

Peak Rep Rev Volt :

80(V)

Automotive :

yes

Peak Non-Repetitive Surge Current (Max) :

50(A)

Peak Non-Repetitive Forward Surge Current (A) :

50
