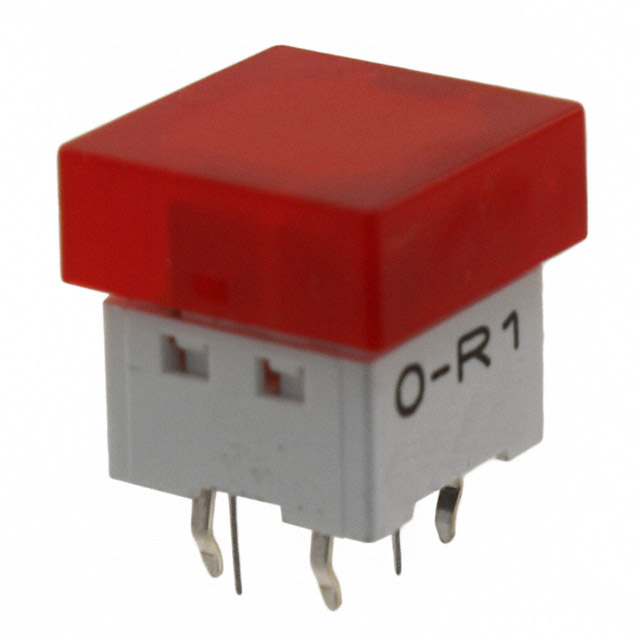

B3W-9010-R1R
Or copy the link below:
- Mfr.Part #
- B3W-9010-R1R
- Manufacturer
- Omron Electronic Components
- Package / Case
- Datasheet
- Download
- Description
- SWITCH TACTILE SPST-NO 0.05A 24V
- Stock
- 421
- In Stock ：
- 421
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Omron Electronic Components
- Product Category :
- Circuit :
- SPST-NO
- Packing Method :
- Box
- Contact Current(DC)-Max :
- 0.05A
- Radiation Hardening :
- No
- Contact Resistance :
- 100MOhm
- Body Height :
- 5.8mm
- Max Voltage Rating (DC) :
- 24V
- Actuator Orientation :
- Top Actuated
- Electrical Life :
- 1e+06 cycles
- Actuator Height off PCB, Vertical :
- 10.20mm
- Orientation :
- Straight
- Body Breadth :
- 12 mm
- Mount :
- Through Hole
- HTS Code :
- 8536.50.90.40
- Switch Type :
- KEYPAD SWITCH
- Illumination Type, Color :
- LED, Red
- Contact Bounce Time-Max :
- 5ms
- Body Length or Diameter :
- 12mm
- Current Rating :
- 50mA
- Voltage - Rated DC :
- 24V
- Throw Configuration :
- SPST
- RoHS Status :
- RoHS Compliant
- Illumination Type :
- Illuminated, LED
- Feature :
- Sealed - Fully
- Illumination :
- Illuminated
- Outline :
- 12.00mm x 12.00mm
- Termination :
- PC Pin
- Operating Force :
- 160gf
- Actuator Length :
- 4.4mm
- Illumination Voltage (Nominal) :
- 1.8VDC
- Number of Switches :
- 1
- Contact Rating @ Voltage :
- 0.05A @ 24VDC
- Mounting Type :
- Through Hole
- Contact (DC) Max Rating R Load :
- .05A@24VDC
- ECCN Code :
- EAR99
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Mechanical Life :
- 1,000,000 Cycles
- Series :
- B3W-9
- Color :
- Red
- Switch Function :
- Off-Mom
- Packaging :
- Bulk
- Factory Lead Time :
- 19 Weeks
- Termination Style :
- PC Pin
- Operating Temperature :
- -25°C~70°C
- Actuator Type :
- Square Button
- Switch Travel :
- 0.25mm
- Published :
- 2002
- Datasheets
- B3W-9010-R1R
