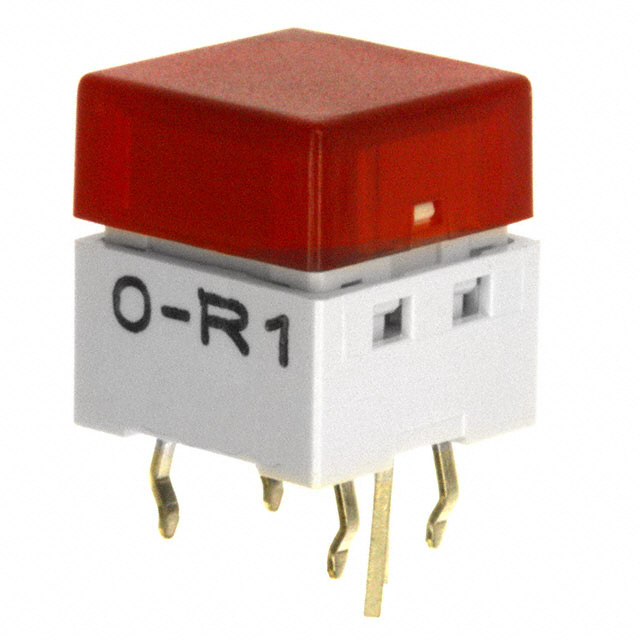

B3W-9002-R1C
Or copy the link below:
- Mfr.Part #
- B3W-9002-R1C
- Manufacturer
- Omron Electronic Components
- Package / Case
- Datasheet
- Download
- Description
- SWITCH TACTILE SPST-NO 0.05A 24V
- Stock
- 34,842
- In Stock ：
- 34,842
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Omron Electronic Components
- Product Category :
- Illumination Voltage (Nominal) :
- 1.8VDC
- Series :
- B3W-9
- Packaging :
- Bulk
- Voltage - Rated DC :
- 24V
- Operating Force :
- 230gf
- Body Height :
- 5.8mm
- Actuator Height off PCB, Vertical :
- 10.20mm
- Factory Lead Time :
- 17 Weeks
- Contact Rating @ Voltage :
- 0.05A @ 24VDC
- Throw Configuration :
- SPST
- Mounting Type :
- Through Hole
- Illumination Color :
- Red
- Body Breadth :
- 10 mm
- Current Rating :
- 50mA
- Orientation :
- Straight
- Outline :
- 10.00mm x 10.00mm
- Operating Temperature :
- -25°C~70°C
- Contact Resistance :
- 100MOhm
- Contact Plating :
- Silver
- Illumination Type :
- Illuminated, LED
- Termination Style :
- PC Pin
- Feature :
- Sealed - Fully
- Sealing :
- DUST PROOF
- Number of Switches :
- 1
- Moisture Sensitivity Level (MSL) :
- Not Applicable
- Switch Function :
- Off-Mom
- Published :
- 2002
- Packing Method :
- Box
- Electrical Life :
- 300000 Cycle(s)
- HTS Code :
- 8536.50.90.40
- Contact (DC) Max Rating R Load :
- .05A@24VDC
- Actuator Type :
- Square Button
- Illumination Type, Color :
- LED, Red
- Switch Type :
- KEYPAD SWITCH
- Mechanical Life :
- 300,000 Cycles
- Contact Current(DC)-Max :
- 0.05A
- Actuator Orientation :
- Top Actuated
- Reach Compliance Code :
- Unknown
- Circuit :
- SPST-NO
- Body Length or Diameter :
- 10mm
- Mount :
- Through Hole
- Termination :
- PC Pin
- RoHS Status :
- RoHS Compliant
- Contact Bounce Time-Max :
- 5ms
- Pbfree Code :
- yes
- Switch Travel :
- 0.25mm
- Max Voltage Rating (DC) :
- 24V
- ECCN Code :
- EAR99
- Illumination :
- Illuminated
- Datasheets
- B3W-9002-R1C
