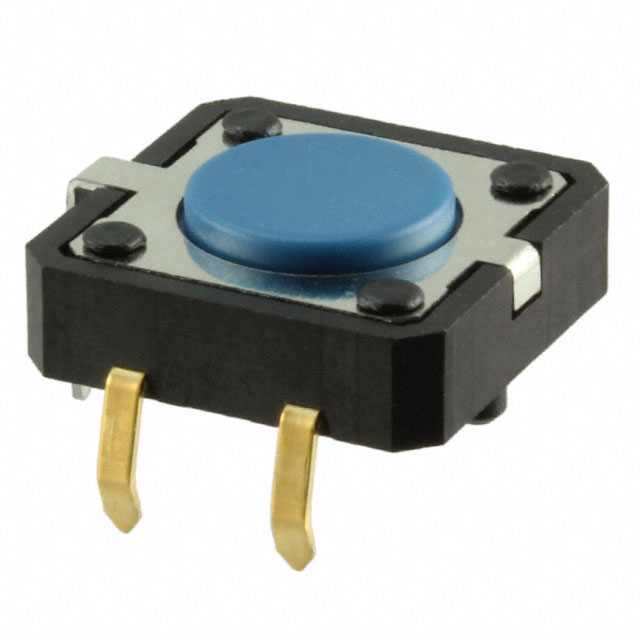

B3F-5101

Share

Or copy the link below:

Mfr.Part #
B3F-5101
Manufacturer
Omron Electronic Components
Package / Case
Datasheet
Download
Description
SWITCH TACTILE SPST-NO 0.05A 24V
Stock
298
In Stock :
298

Request A Quote(RFQ)

* Fullname:
* Company:
* E-Mail:
  Phone:
  Comment:
* Quantity:
Manufacturer :
Omron Electronic Components
Product Category :
REACH SVHC :
Unknown
Height :
4.3mm
Switch Type :
KEYPAD SWITCH
Contact Rating @ Voltage :
0.05A @ 24VDC
Packaging :
Bulk
Feature :
Grounding Pin
Illumination :
Non-Illuminated
Depth :
12mm
Dielectric Withstanding Voltage :
500VAC V
Circuit :
SPST-NO
Mount :
Through Hole
HTS Code :
8536.50.90.40
Current Rating :
50mA
Contact Resistance :
100MOhm
Width :
12mm
RoHS Status :
RoHS Compliant
Contact Current(DC)-Max :
0.05A
Actuator Length :
800μm
Actuator Height off PCB, Vertical :
4.30mm
Contact Function :
OFF-(ON)
Switch Travel :
0.30mm
PCB Hole Count :
7
Length :
12mm
Operating Force :
130gf
Number of Switches :
1
Outline :
12.00mm x 12.00mm
Published :
2003
Actuator Type :
Standard
Series :
B3F
Number of Poles :
1
ECCN Code :
EAR99
Additional Feature :
BAG PACKAGING,GROUND TERMINALS
Orientation :
Straight
Contact Plating :
Gold, Silver
Switch Function :
Off-Mom
Throw Configuration :
SPST
Pbfree Code :
yes
Electrical Life :
1e+07 cycles
Max Current Rating :
50mA
Contact Material :
Gold, Silver
Lead Free :
Lead Free
Termination Style :
PC Pin
Terminal Finish :
Gold (Au)
Contact Bounce Time-Max :
5ms
Max Voltage Rating (DC) :
24V
Contact Current Rating :
50mA
Moisture Sensitivity Level (MSL) :
Not Applicable
Weight :
850mg
Operating Temperature :
-25°C~70°C
Voltage - Rated DC :
24V
Factory Lead Time :
17 Weeks
JESD-609 Code :
e4
Mechanical Life :
10,000,000 Cycles
Termination :
PC Pins
Contact (DC) Max Rating R Load :
.05A@24VDC
Mounting Type :
Through Hole
Actuator Orientation :
Top Actuated
Illumination Type :
Illuminated, Non-Illuminated
Introducing Omron Electronic Components B3F-5101 from Chip IC,where excellence meets affordability. This product stands out with its Circuit:SPST-NO, Operating Temperature:-25°C~70°C, Mounting Type:Through Hole, B3F-5101 pinout, B3F-5101 datasheet PDF, B3F-5101 amp .Beyond Omron Electronic Components B3F-5101 ,we also offer F9TYP5E5EANF093, F9TYP5E5EANF094, F9TYP5E5EANF095, Our vast inventory has you covered. Contact us now for immediate solutions.

Omron Electronic Components B3F-5101


B3F-5101 datasheet pdf and Tactile Switches product details from Omron Electronics Inc-EMC Div stock available at
