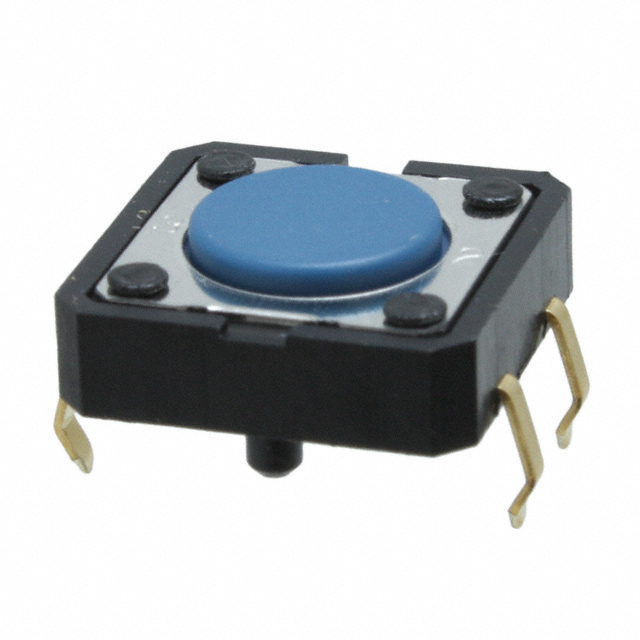

B3F-5001
Or copy the link below:
- Mfr.Part #
- B3F-5001
- Manufacturer
- Omron Electronic Components
- Package / Case
- Datasheet
- Download
- Description
- SWITCH TACTILE SPST-NO 0.05A 24V
- Stock
- 386
- In Stock ：
- 386
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Omron Electronic Components
- Product Category :
- HTS Code :
- 8536.50.90.40
- Mount :
- Through Hole
- Actuator Length :
- 800μm
- Throw Configuration :
- SPST
- PCB Hole Count :
- 6
- Contact (DC) Max Rating R Load :
- .05A@24VDC
- Current Rating :
- 50mA
- Mechanical Life :
- 10,000,000 Cycles
- Contact Rating @ Voltage :
- 0.05A @ 24VDC
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Lead Free :
- Lead Free
- Factory Lead Time :
- 15 Weeks
- Packaging :
- Bulk
- Published :
- 2004
- Height :
- 4.3mm
- Illumination Type :
- Illuminated, Non-Illuminated
- Operating Force :
- 130gf
- JESD-609 Code :
- e4
- Mounting Type :
- Through Hole
- Width :
- 12mm
- Contact Bounce Time-Max :
- 5ms
- Circuit :
- SPST-NO
- Outline :
- 12.00mm x 12.00mm
- Contact Plating :
- Gold
- Termination Style :
- PC Pin
- Termination :
- PC Pin
- Additional Feature :
- BAG PACKAGING
- ECCN Code :
- EAR99
- Actuator Type :
- Standard
- Illumination :
- Non-Illuminated
- Number of Poles :
- 1
- Contact Current Rating :
- 50mA
- Contact Material :
- Gold, Silver
- Actuator Height off PCB, Vertical :
- 4.30mm
- Max Voltage Rating (DC) :
- 24V
- Actuator Orientation :
- Top Actuated
- Length :
- 12mm
- Pbfree Code :
- yes
- Electrical Life :
- 1e+07 cycles
- Switch Function :
- Off-Mom
- Operating Temperature :
- -25°C~70°C
- Contact Resistance :
- 100MOhm
- Switch Travel :
- 0.30mm
- Switch Type :
- KEYPAD SWITCH
- REACH SVHC :
- Unknown
- Voltage - Rated DC :
- 24V
- Dielectric Withstanding Voltage :
- 500VAC V
- Orientation :
- Straight
- Contact Current(DC)-Max :
- 0.05A
- Contact Function :
- OFF-(ON)
- Number of Switches :
- 1
- Weight :
- 850mg
- RoHS Status :
- RoHS Compliant
- Series :
- B3F
- Datasheets
- B3F-5001
B3F-5001 Documents
B3F-5001 datasheet pdf and Tactile Switches product details from Omron Electronics Inc-EMC Div stock available at
