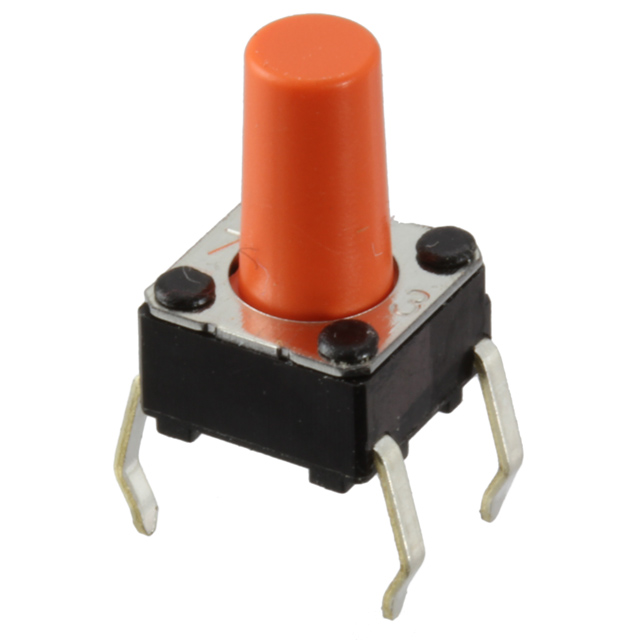

B3F-1075
Or copy the link below:
- Mfr.Part #
- B3F-1075
- Manufacturer
- Omron Electronic Components
- Package / Case
- Datasheet
- Download
- Description
- SWITCH TACTILE SPST-NO 0.05A 24V
- Stock
- 18,963
- In Stock ：
- 18,963
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Omron Electronic Components
- Product Category :
- Outline :
- 6.00mm x 6.00mm
- Height :
- 9.5mm
- Actuator Type :
- Standard
- Switch Type :
- KEYPAD SWITCH
- Depth :
- 6mm
- ECCN Code :
- EAR99
- Contact Current Rating :
- 50mA
- Number of Poles :
- 1
- Actuator Length :
- 6.1mm
- RoHS Status :
- RoHS Compliant
- Actuator Orientation :
- Top Actuated
- Illumination :
- Non-Illuminated
- Packaging :
- Bag
- Operating Temperature :
- -25°C~70°C
- Mechanical Life :
- 100,000 Cycles
- Orientation :
- Straight
- Throw Configuration :
- SPST
- Actuator Height off PCB, Vertical :
- 9.50mm
- Contact Rating @ Voltage :
- 0.05A @ 24VDC
- Contact Current(DC)-Max :
- 0.05A
- Operating Force :
- 260gf
- Terminal Finish :
- Gold (Au)
- Switch Travel :
- 0.25mm
- Contact Material :
- Gold, Silver
- Contact Bounce Time-Max :
- 5ms
- JESD-609 Code :
- e4
- Max Voltage Rating (DC) :
- 24V
- Voltage - Rated DC :
- 24V
- Weight :
- 250mg
- Mounting Type :
- Through Hole
- Mount :
- Through Hole
- Termination :
- PC Pins
- Electrical Life :
- 100000 cycles
- Color :
- Black
- Termination Style :
- PC Pin
- Current Rating :
- 50mA
- Length :
- 6mm
- HTS Code :
- 8536.50.90.40
- Factory Lead Time :
- 12 Weeks
- Circuit :
- SPST-NO
- Contact (DC) Max Rating R Load :
- .05A@24VDC
- Width :
- 6mm
- Contact Plating :
- Gold, Silver
- Illumination Type :
- Illuminated, Non-Illuminated
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Number of Switches :
- 1
- Contact Resistance :
- 100MOhm
- Published :
- 2003
- REACH SVHC :
- Unknown
- Series :
- B3F
- Max Current Rating :
- 50mA
- Switch Function :
- Off-Mom
- Datasheets
- B3F-1075
