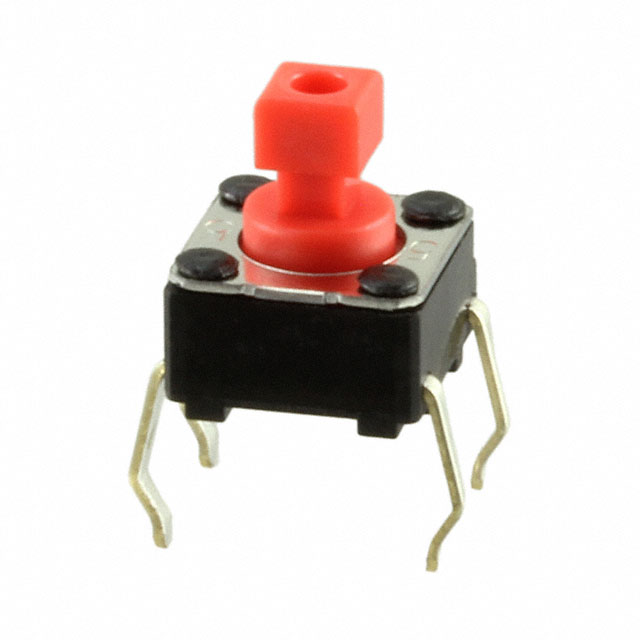

B3F-1056
Or copy the link below:
- Mfr.Part #
- B3F-1056
- Manufacturer
- Omron Electronic Components
- Package / Case
- Datasheet
- Download
- Description
- SWITCH TACTILE SPST-NO 0.05A 24V
- Stock
- 1,919
- In Stock ：
- 1,919
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Omron Electronic Components
- Product Category :
- Factory Lead Time :
- 12 Weeks
- JESD-609 Code :
- e4
- Actuator Type :
- Plunger for Cap
- Illumination Type :
- Illuminated, Non-Illuminated
- Mechanical Life :
- 50,000 Cycles
- Terminal Finish :
- Gold (Au)
- Voltage - Rated DC :
- 24V
- Mounting Type :
- Through Hole
- Number of Switches :
- 1
- REACH SVHC :
- Unknown
- Circuit :
- SPST-NO
- Illumination :
- Non-Illuminated
- Length :
- 6mm
- Operating Temperature :
- -25°C~70°C
- Actuator Height off PCB, Vertical :
- 7.30mm
- Depth :
- 6mm
- Current Rating :
- 50mA
- Actuator Orientation :
- Top Actuated
- Termination :
- PC Pins
- RoHS Status :
- RoHS Compliant
- Contact (DC) Max Rating R Load :
- .05A@24VDC
- Number of Poles :
- 1
- Max Current Rating :
- 50mA
- Width :
- 6mm
- Termination Style :
- PC Pin
- ECCN Code :
- EAR99
- Orientation :
- Straight
- Moisture Sensitivity Level (MSL) :
- Not Applicable
- Mount :
- Through Hole
- Switch Function :
- Off-Mom
- Actuator Length :
- 3.9mm
- Contact Bounce Time-Max :
- 5ms
- Weight :
- 250mg
- Height :
- 7.3mm
- Contact Resistance :
- 100MOhm
- Contact Rating @ Voltage :
- 0.05A @ 24VDC
- Contact Plating :
- Gold, Silver
- Switch Type :
- KEYPAD SWITCH
- Contact Material :
- Gold, Silver
- Contact Current(DC)-Max :
- 0.05A
- Contact Current Rating :
- 50mA
- Outline :
- 6.00mm x 6.00mm
- Throw Configuration :
- SPST
- Published :
- 2003
- Operating Force :
- 500gf
- Series :
- B3F
- Max Voltage Rating (DC) :
- 24V
- HTS Code :
- 8536.50.90.40
- Switch Travel :
- 0.25mm
- Electrical Life :
- 50000 cycles
- Packaging :
- Bulk
- Datasheets
- B3F-1056
B3F-1056 Documents
B3F-1056 datasheet pdf and Tactile Switches product details from Omron Electronics Inc-EMC Div stock available at
