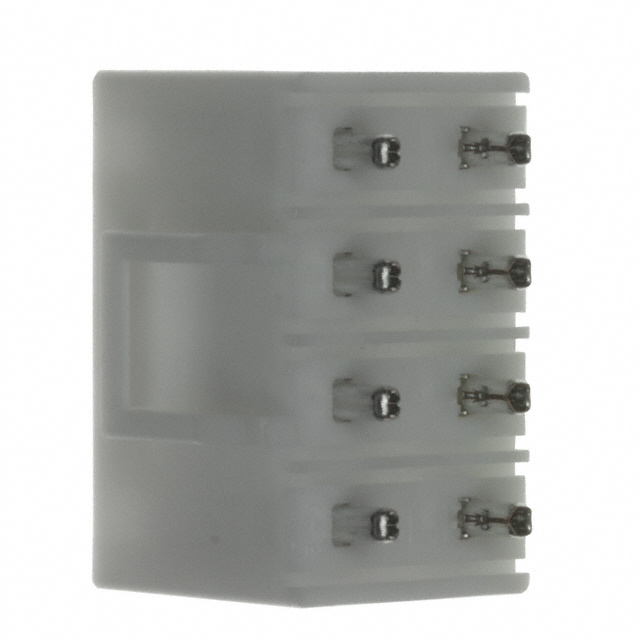

B08P-VL

Manufacturer :

JST

Product Category :

Headers, Male Pins

UL Flammability Code :

94V-0

Published :

2010

Empty Shell :

No

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Pbfree Code :

yes

Number of Positions :

8

Contact Type :

Male Pin

Factory Lead Time :

16 Weeks

Series :

VL

Voltage - Rated :

600V

Contact Material :

COPPER ALLOY

Shell Material :

POLYAMIDE66

Lead Free :

Lead Free

REACH SVHC :

Unknown

Insulation Material :

Polyamide (PA66), Nylon 6/6

Connector Type :

Header

JESD-609 Code :

e3

Option :

GENERAL PURPOSE

Gender :

Male

Packaging :

Bulk

Contact Shape :

Square

ECCN Code :

EAR99

Insulation Height :

0.646 16.40mm

Mixed Contacts :

No

Filter Feature :

No

Style :

Board to Cable/Wire

Termination :

Solder

Number of Rows :

2

Number of Positions Loaded :

All

MIL Conformance :

No

Fastening Type :

Latch Holder

Stack Height (Mating) :

29.2mm

Orientation :

Straight

Contact Finish - Mating :

Tin

Insulation Color :

Natural

Pitch - Mating :

0.244 6.20mm

Material Flammability Rating :

UL94 V-0

RoHS Status :

RoHS Compliant

Contact Length - Post :

0.142 3.60mm

Mount :

Through Hole

Operating Temperature :

-25°C~90°C

Shrouding :

Shrouded - 4 Wall

Row Spacing - Mating :

0.326 (8.28mm)

Current Rating :

20A

Mounting Type :

Through Hole

DIN Conformance :

No

IEC Conformance :

No
