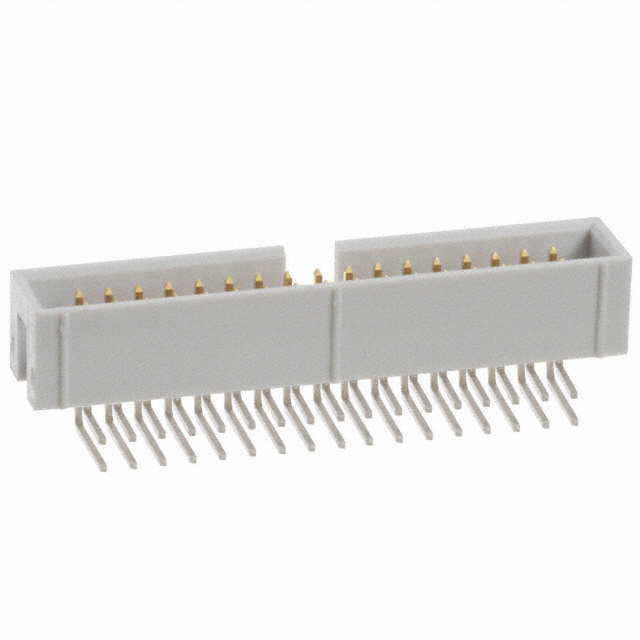

AWHW 34A-0202-T
Or copy the link below:
- Mfr.Part #
- AWHW 34A-0202-T
- Manufacturer
- ASSMANN WSW Components
- Package / Case
- Datasheet
- Download
- Description
- CONN HEADER R/A 34POS 2.54MM
- Stock
- 16,966
- In Stock ：
- 16,966
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- ASSMANN WSW Components
- Product Category :
- Headers, Male Pins
- Contact Shape :
- Square
- Contact Material :
- Brass
- Contact Resistance :
- 30mOhm
- Contact Type :
- Male Pin
- Mating Contact Pitch :
- 0.1 inch
- Termination :
- Solder
- Mounting Type :
- Through Hole, Right Angle
- PCB Contact Pattern :
- RECTANGULAR
- Polarization Key :
- POLARIZED HOUSING
- Mounting Option 2 :
- LOCKING
- Pitch - Mating :
- 0.100 2.54mm
- Fastening Type :
- Push-Pull
- Shrouding :
- Shrouded - 4 Wall
- Insulation Height :
- 0.352 8.95mm
- Number of Rows :
- 2
- Additional Feature :
- LOW PROFILE
- Body Breadth :
- 0.354 inch
- Contact Finish - Post :
- Tin
- Number of Positions Loaded :
- All
- Material Flammability Rating :
- UL94 V-0
- Number of Conductors :
- ONE
- Factory Lead Time :
- 23 Weeks
- Reliability :
- COMMERCIAL
- Contact Finish - Mating :
- Gold
- Reference Standard :
- UL,VDE
- Insulation Color :
- Gray
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Insulation Material :
- Polybutylene Terephthalate (PBT), Glass Filled
- Operating Temperature :
- -40°C~105°C
- Contact Length - Post :
- 0.124 3.15mm
- Number Of PCB Rows :
- 2
- JESD-609 Code :
- e3
- Mounting Option 1 :
- GUIDE SLOT
- Contact Finish Thickness - Mating :
- Flash
- Current Rating (Amps) :
- 3A
- Connector Type :
- Header
- Packaging :
- Tray
- RoHS Status :
- ROHS3 Compliant
- Row Spacing - Mating :
- 0.100 (2.54mm)
- Style :
- Board to Cable/Wire
- Feature :
- Keying Slot
- Number of Positions :
- 34
- Contact Length - Mating :
- 0.224 5.70mm
- Datasheets
- AWHW 34A-0202-T
AWHW 34A-0202-T Documents
2-Row Header Solder Brass Tray Through Hole, Right Angle Gold Polybutylene Terephthalate (PBT), Glass Filled 34-Position Board to Cable/Wire 0.352 8.95mm Height
AWHW 34A-0202-T Overview
The product comes in a package of Header.Through Hole, Right Angle is the type of mounting for the device.To package the product, a Tray case is used.Among other features are LOW PROFILE, to name only a few.It is more powerful in many ways due to its Keying Slot feature.It operates at an operating temperature of -40°C~105°C.
AWHW 34A-0202-T Features
AWHW 34A-0202-T Applications
There are a lot of Assmann WSW Components
AWHW 34A-0202-T Rectangular Connectors applications.
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
