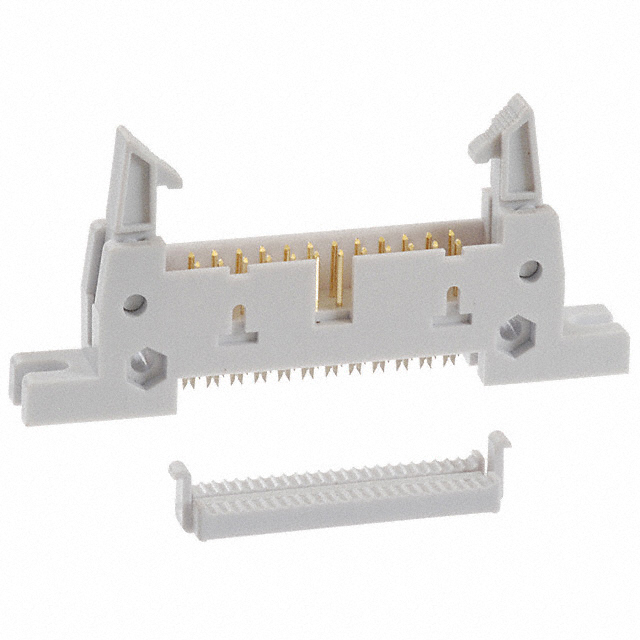

AWH 24G-E232-IDC
Or copy the link below:
- Mfr.Part #
- AWH 24G-E232-IDC
- Manufacturer
- ASSMANN WSW Components
- Package / Case
- Datasheet
- Download
- Description
- CONN HEADER 24POS IDC GOLD
- Stock
- 15,016
- In Stock ：
- 15,016
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- ASSMANN WSW Components
- Product Category :
- Free Hanging, Panel Mount
- Mounting Type :
- Panel Mount
- Reliability :
- COMMERCIAL
- Color :
- Gray
- Feature :
- Feed Through
- Pbfree Code :
- yes
- Number of Positions :
- 24
- Mounting Option 2 :
- LOCKING
- Body Depth :
- 0.756 inch
- Contact Design :
- PREASSEM CONN
- RoHS Status :
- ROHS3 Compliant
- Packaging :
- Tray
- Termination Type :
- IDC
- Row Spacing :
- 0.100 (2.54mm)
- Insulation Resistance :
- 5000000000Ohm
- Plating Thickness :
- 100μin
- Operating Temperature (Min) :
- -40°C
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Rated Current (Signal) :
- 3A
- Polarization Key :
- POLARIZED HOUSING
- Operating Temperature (Max) :
- 105°C
- Pitch :
- 0.100 2.54mm
- Connector Type :
- Header
- Contact Finish :
- Gold
- Body Length or Diameter :
- 3.143 inch
- Dielectric Withstanding Voltage :
- 1000VAC V
- Cable Termination :
- IDC
- Fastening Type :
- Latch Lock/Eject Hooks, Long
- Number of Rows :
- 2
- Factory Lead Time :
- 23 Weeks
- Total Number of Contacts :
- 24
- Reference Standard :
- UL
- Contact Type :
- Male Pin
- Contact Material :
- COPPER ALLOY
- Wire Type :
- Ribbon Cable
- Datasheets
- AWH 24G-E232-IDC
AWH 24G-E232-IDC Documents
AWH 24G-E232-IDC datasheet pdf and Rectangular Connectors - Free Hanging, Panel Mount product details from Assmann WSW Components stock available at Xinshop
