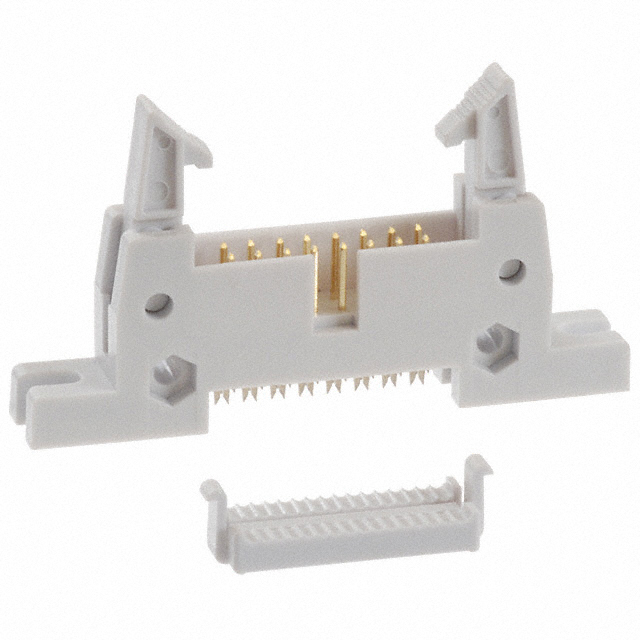

AWH 16G-E232-IDC
Or copy the link below:
- Mfr.Part #
- AWH 16G-E232-IDC
- Manufacturer
- ASSMANN WSW Components
- Package / Case
- Datasheet
- Download
- Description
- CONN HEADER 16POS IDC GOLD
- Stock
- 25,224
- In Stock ：
- 25,224
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- ASSMANN WSW Components
- Product Category :
- Free Hanging, Panel Mount
- ECCN Code :
- EAR99
- Rated Current (Signal) :
- 3A
- RoHS Status :
- ROHS3 Compliant
- Number of Rows :
- 2
- Fastening Type :
- Latch Lock/Eject Hooks, Long
- Operating Temperature (Max) :
- 105°C
- Mounting Type :
- Panel Mount
- Mounting Option 2 :
- LOCKING
- Connector Type :
- Header
- Additional Feature :
- RoHS Compliant
- Termination Type :
- IDC
- Contact Type :
- Male Pin
- Reference Standard :
- UL
- Dielectric Withstanding Voltage :
- 1000VAC V
- Contact Finish :
- Gold
- Plating Thickness :
- 100μin
- Feature :
- Feed Through
- Color :
- Gray
- Operating Temperature (Min) :
- -40°C
- Pitch :
- 0.100 2.54mm
- Polarization Key :
- POLARIZED HOUSING
- Contact Material :
- COPPER ALLOY
- Total Number of Contacts :
- 16
- Contact Design :
- PREASSEM CONN
- Row Spacing :
- 0.100 (2.54mm)
- Factory Lead Time :
- 23 Weeks
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- HTS Code :
- 8536.69.40.40
- Body/Shell Style :
- Receptacle
- Reliability :
- COMMERCIAL
- Packaging :
- Tube
- Wire Type :
- Ribbon Cable
- Number of Positions :
- 16
- Body Depth :
- 0.756 inch
- Cable Termination :
- IDC
- Insulation Resistance :
- 5000000000Ohm
- Datasheets
- AWH 16G-E232-IDC
AWH 16G-E232-IDC Documents
