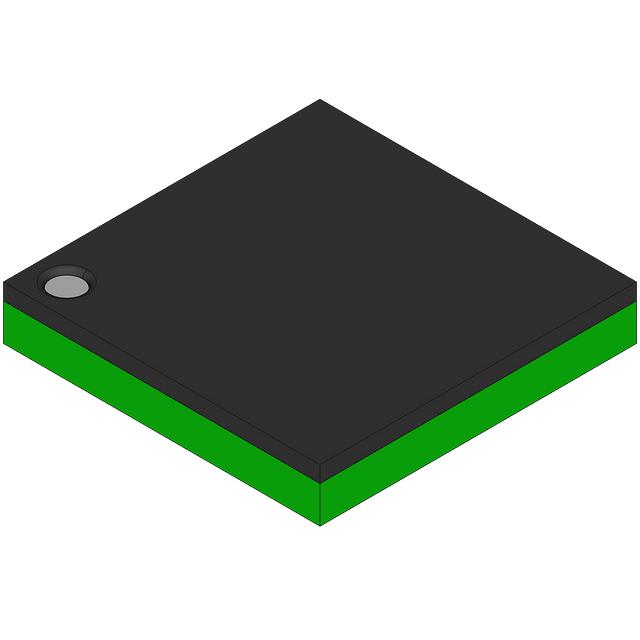

ATXMEGA64A4U-CU

Manufacturer :

Atmel (Microchip Technology)

Product Category :

Microcontrollers

Contact Plating :

Copper, Silver, Tin

Width :

5 mm

Terminal Form :

Ball

Series :

AVR® XMEGA® A4U

Voltage - Supply (Vcc/Vdd) :

1.6V~3.6V

Interface Type :

I2C, SPI, USART, USB

PWM Channels :

yes

Interface :

I2C, IrDA, SPI, UART, USART, USB

Qualification Status :

Not Qualified

Factory Lead Time :

7 Weeks

Supply Voltage :

3V

Core Size :

8/16-Bit

Package Shape :

Square

Mounting Type :

Surface Mount

RoHS Status :

ROHS3 Compliant

Package :

Tray

Supply Voltage-Max (Vsup) :

3.6V

RAM Size :

4K x 8

Data Bus Width :

8B

Supply Current-Max :

12 mA

Operating Temperature :

-40°C~85°C TA

Data Converters :

A/D 12x12b, D/A 2x12b

DAC Channels :

yes

Device Core :

AVR

JESD-30 Code :

S-PBGA-B49

Number of I/O :

34

Product Category :

8-bit Microcontrollers - MCU

Has ADC :

yes

Terminal Position :

BOTTOM

Watchdog Timer :

yes

Oscillator Type :

Internal

ROM (words) :

65536

RAM (bytes) :

4096

Temperature Grade :

Industrial

Moisture Sensitivity Level (MSL) :

3 (168 Hours)

Program Memory Type :

Flash

Base Product Number :

ATXMEGA64

Published :

2013

Connectivity :

CANbus, I2C, IrDA, LINbus, SPI, UART/USART

Number of I/O Lines :

34

RoHS :

Details

Seated Height-Max :

1 mm

Peripherals :

Brown-out Detect/Reset, DMA, POR, PWM, WDT

Mount :

Surface Mount

Manufacturer :

Microchip

Number of Terminations :

49

Surface Mount :

yes

Supplier Device Package :

49-VFBGA (5x5)

Tradename :

XMEGA

Program Memory Size :

64KB 32K x 16

Mounting Style :

SMD/SMT

Package / Case :

49-VFBGA

Maximum Operating Temperature :

+ 85 C

Supply Voltage-Min (Vsup) :

2.7V

Power Supplies :

1.8/3.3V

Height Seated (Max) :

1mm

Base Part Number :

ATXMEGA64

Number of Timers/Counters :

5

uPs/uCs/Peripheral ICs Type :

MICROCONTROLLER, RISC

ROM Programmability :

Flash

Number of I/Os :

34 I/O

Speed :

32MHz

Additional Feature :

OPERATES AT 1.8 V MINIMUM SUPPLY AT 12 MHZ

Length :

5 mm

Number of Terminals :

49

Product Type :

8-bit Microcontrollers - MCU

Product :

MCU

CPU Family :

AVR RISC

Brand :

Microchip Technology / Atmel

Bit Size :

16

DAC Resolution :

12 bit

EEPROM Size :

2K x 8

Number of ADC Channels :

12 Channel

Reach Compliance Code :

Compliant

Core Processor :

AVR

Frequency :

32MHz

Minimum Operating Temperature :

- 40 C

Packaging :

Tray

Product Status :

Active

Pbfree Code :

yes

Number of Pins :

49

Interfaces :

SPI/TWI/USART/USB

Terminal Pitch :

0.65 mm

Data Converter :

A/D 12x12b; D/A 2x12b

Memory Size :

64KB

DMA Channels :

yes
