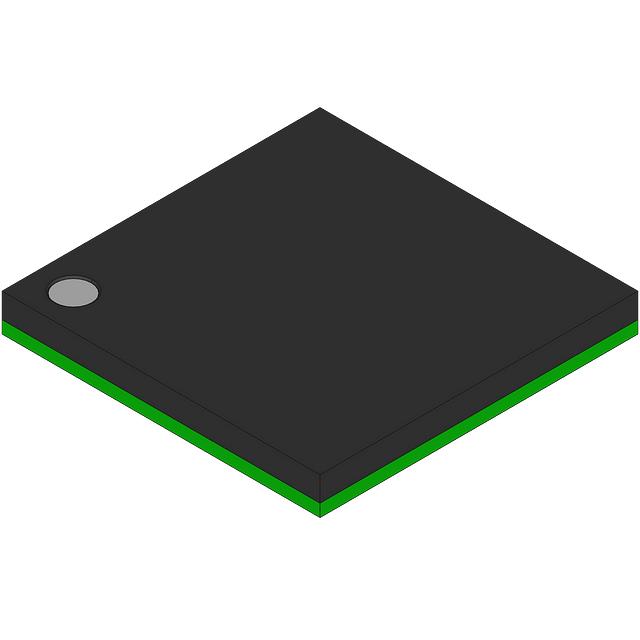

ATXMEGA64A1-CUR

Manufacturer :

Atmel (Microchip Technology)

Product Category :

Microcontrollers

Supply Voltage-Min (Vsup) :

2.7V

Peak Reflow Temperature (Cel) :

260

Data Bus Width :

8B

Product Category :

8-bit Microcontrollers - MCU

Surface Mount :

yes

Voltage - Supply (Vcc/Vdd) :

1.6V~3.6V

Peripherals :

Brown-out Detect/Reset, DMA, POR, PWM, WDT

Operating Temperature :

-40°C~85°C TA

Terminal Pitch :

0.8 mm

RAM Size :

4K x 8

Subcategory :

Microcontrollers - MCU

Data Converter :

A/D 16x12b; D/A 4x12b

Memory Type :

FLASH, OTP

Qualification Status :

Not Qualified

Data Converters :

A/D 16x12b, D/A 4x12b

Number of Pins :

100

JESD-30 Code :

S-PBGA-B100

Published :

2013

Terminal Position :

BOTTOM

Time@Peak Reflow Temperature-Max (s) :

40

Core Size :

8/16-Bit

RoHS :

Details

Supplier Device Package :

100-CBGA (9x9)

Core Processor :

AVR

Speed :

32 MHz

Width :

9 mm

Device Core :

AVR

Height Seated (Max) :

1.2mm

Interfaces :

SPI/USART/USB

Pbfree Code :

yes

Bit Size :

16

DMA Channels :

yes

uPs/uCs/Peripheral ICs Type :

MICROCONTROLLER, RISC

Interface :

EBI/EMI, I2C, IrDA, SPI, UART, USART

EEPROM Size :

2K x 8

Product Status :

Active

Program Memory Type :

Flash

Number of Terminals :

100

Temperature Grade :

Industrial

Supply Voltage :

3.3V

Base Part Number :

ATXMEGA64

Connectivity :

EBI/EMI, I2C, IrDA, SPI, UART/USART

Product Type :

8-bit Microcontrollers - MCU

Moisture Sensitivity Level (MSL) :

3 (168 Hours)

RoHS Status :

ROHS3 Compliant

Manufacturer :

Microchip

Has ADC :

yes

Seated Height-Max :

1.2 mm

Terminal Finish :

TIN SILVER COPPER

Factory Lead Time :

7 Weeks

Minimum Operating Temperature :

- 40 C

Tradename :

XMEGA

Reach Compliance Code :

Compliant

Product :

MCU

Package Shape :

Square

Memory Size :

14kB

Packaging :

Tape and Reel (TR)

Number of Timers/Counters :

8

Number of I/O Lines :

78

Frequency :

4MHz

Length :

9mm

Number of I/O :

78

Additional Feature :

ALSO OPERATES AT 1.6V MINIMUM SUPPLY AT 12 MHZ

Package :

Tape and Reel (TR);Cut Tape (CT);Digi-Reel®;

Mounting Style :

SMD/SMT

Mounting Type :

Surface Mount

DAC Channels :

yes

Base Product Number :

ATXMEGA64

Series :

AVR® XMEGA® A1

Number of Terminations :

100

Supply Voltage-Max (Vsup) :

3.6V

Maximum Operating Temperature :

+ 85 C

Terminal Form :

Ball

Package / Case :

100-TFBGA

JESD-609 Code :

e1

Oscillator Type :

Internal

Program Memory Size :

64KB 32K x 16

Brand :

Microchip Technology

Number of I/Os :

78 I/O

ROM Programmability :

Flash

PWM Channels :

yes
