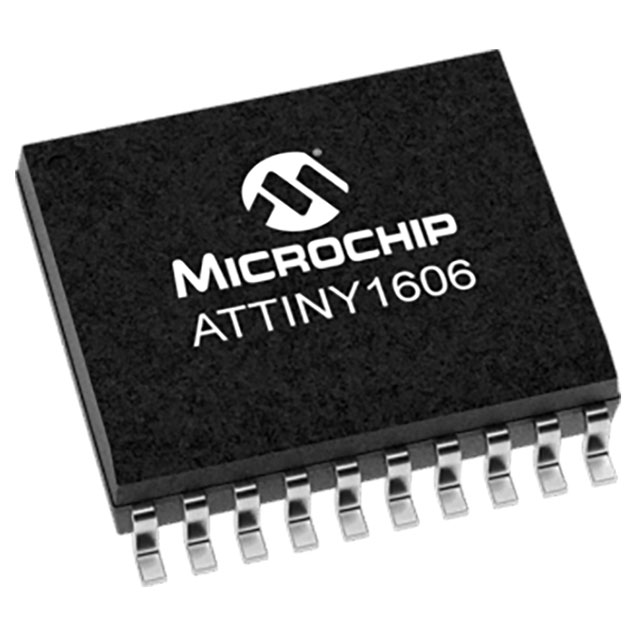

ATTINY1606-SNR

Manufacturer :

Microchip Technology

Product Category :

Microcontrollers

uPs/uCs/Peripheral ICs Type :

MICROCONTROLLER, RISC

Tradename :

AVR

Core Size :

8-Bit

Brand :

Microchip Technology / Atmel

Product Status :

Active

Data Converter :

A/D 12x10b

RAM Size :

1K x 8

Has ADC :

yes

Data Bus Width :

8 bit

DAC Channels :

No

Terminal Position :

Dual

EEPROM Size :

256 x 8

Connectivity :

I2C, SPI, UART/USART

Reach Compliance Code :

Compliant

On Chip Program ROM Width :

16

Base Product Number :

ATTINY1606

Width :

7.5mm

JESD-30 Code :

R-PDSO-G20

Clock Frequency :

20MHz

Core Processor :

AVR

Minimum Operating Temperature :

- 40 C

Number of Terminals :

20

Voltage - Supply (Vcc/Vdd) :

1.8V~5.5V

Seated Height-Max :

2.65 mm

Number of I/O Lines :

18

Peripherals :

Brown-out Detect/Reset, POR, PWM, WDT

Terminal Pitch :

1.27mm

Temperature Grade :

Industrial

Subcategory :

Microcontrollers - MCU

Surface Mount :

yes

Low Power Mode :

yes

Product Type :

8-bit Microcontrollers - MCU

Supply Voltage-Max (Vsup) :

5.5V

Package :

Tape and Reel (TR);Cut Tape (CT);Digi-Reel®;

Program Memory Size :

16KB 16K x 8

Mounting Type :

Surface Mount

Data Converters :

A/D 12x10b

Supplier Device Package :

20-SOIC

Number of I/Os :

18 I/O

Additional Feature :

2.7V MIN @ 10MHZ AND 1.8V MIN @5MHZ FREQUENCY AVAILABLE

Product Category :

8-bit Microcontrollers - MCU

Package Shape :

RECTANGULAR

Mounting Style :

SMD/SMT

Supply Voltage-Min (Vsup) :

4.5V

ROM Programmability :

Flash

Maximum Operating Temperature :

+ 105 C

Speed :

20MHz

Oscillator Type :

Internal

Moisture Sensitivity Level (MSL) :

3 (168 Hours)

Length :

12.8mm

RoHS :

Details

Factory Lead Time :

7 Weeks

Series :

AVR® ATtiny

Number of I/O :

18

Program Memory Type :

Flash

Terminal Form :

Gull wing

RAM (bytes) :

1024

RAM (words) :

1024

DMA Channels :

No

On Chip Data RAM Width :

8

RoHS Status :

ROHS3 Compliant

Package / Case :

20-SOIC (0.295, 7.50mm Width)

Height Seated (Max) :

2.65mm

Bit Size :

8

Product :

MCU

Packaging :

Tape and Reel (TR)

Supply Voltage :

5V

Manufacturer :

Microchip

Number of Timers :

3

ROM (words) :

8192

Number of ADC Channels :

12 Channel

Interface Type :

I2C, SPI, UART

PWM Channels :

yes

CPU Family :

AVR RISC

Number of Terminations :

20

Operating Temperature :

-40°C~105°C TA
