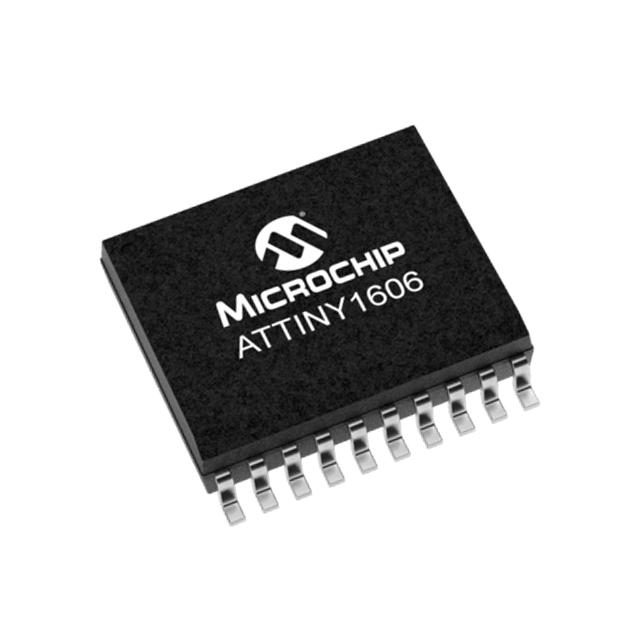

ATTINY1606-SFR

Manufacturer :

Microchip Technology

Product Category :

Microcontrollers

Maximum Operating Temperature :

+ 125 C

Core Processor :

AVR

Number of ADC Channels :

12 Channel

JESD-30 Code :

R-PDSO-G20

Clock Frequency :

20MHz

Manufacturer :

Microchip

Data Bus Width :

8 bit

On Chip Data RAM Width :

8

Supply Voltage :

5V

Minimum Operating Temperature :

- 40 C

Interface Type :

I2C, SPI, UART

Data Converter :

A/D 12x10b

RoHS :

Details

Supplier Device Package :

20-SOIC

uPs/uCs/Peripheral ICs Type :

MICROCONTROLLER, RISC

Low Power Mode :

yes

Terminal Pitch :

1.27mm

Operating Temperature :

-40°C~125°C TA

Product Status :

Active

Core Size :

8-Bit

Series :

AVR® ATtiny

Product :

MCU

Temperature Grade :

Automotive

CPU Family :

AVR RISC

Package Shape :

RECTANGULAR

Product Category :

8-bit Microcontrollers - MCU

Additional Feature :

2.7V MIN @ 10MHZ AND 1.8V MIN @5MHZ FREQUENCY AVAILABLE

Factory Lead Time :

7 Weeks

Tradename :

AVR

ROM Programmability :

Flash

Number of I/O Lines :

18

Terminal Position :

Dual

Surface Mount :

yes

Package :

Tape and Reel (TR);Cut Tape (CT);Digi-Reel®;

Seated Height-Max :

2.65 mm

RAM (words) :

1024

Oscillator Type :

Internal

Moisture Sensitivity Level (MSL) :

3 (168 Hours)

On Chip Program ROM Width :

16

Has ADC :

yes

Peripherals :

Brown-out Detect/Reset, POR, PWM, WDT

Program Memory Size :

16KB 16K x 8

Base Product Number :

ATTINY1606

Voltage - Supply (Vcc/Vdd) :

1.8V~5.5V

Number of Terminations :

20

PWM Channels :

yes

Packaging :

Tape and Reel (TR)

Mounting Style :

SMD/SMT

Length :

12.8mm

EEPROM Size :

256 x 8

Supply Voltage-Max (Vsup) :

5.5V

Product Type :

8-bit Microcontrollers - MCU

RAM (bytes) :

1024

Number of Timers :

3

Subcategory :

Microcontrollers - MCU

Width :

7.5mm

Program Memory Type :

Flash

Bit Size :

8

Speed :

20MHz

Number of I/O :

18

Connectivity :

I2C, SPI, UART/USART

Number of Terminals :

20

Height Seated (Max) :

2.65mm

DAC Channels :

No

Terminal Form :

Gull wing

Data Converters :

A/D 12x10b

RAM Size :

1K x 8

Package / Case :

20-SOIC (0.295, 7.50mm Width)

ROM (words) :

8192

Number of I/Os :

18 I/O

Mounting Type :

Surface Mount

Brand :

Microchip Technology / Atmel

Reach Compliance Code :

Compliant

RoHS Status :

ROHS3 Compliant

Supply Voltage-Min (Vsup) :

4.5V

DMA Channels :

No
