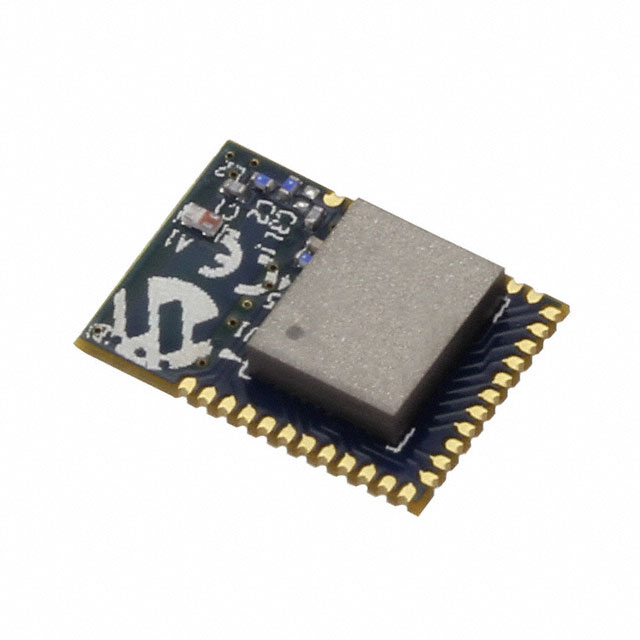

ATSAMB11-ZR210CA

Manufacturer :

Microchip Technology

Product Category :

RF Transceiver ICs

Seated Height-Max :

1.868 mm

Moisture Sensitivity Level (MSL) :

3 (168 Hours)

Base Part Number :

ATSAMB11

Data Rate (Max) :

--

Current - Receiving :

5mA

Memory Size :

256kB Flash 128kB ROM 128kB RAM

Manufacturer :

Microchip Technology Inc

Frequency :

2.4GHz

Temperature Grade :

Industrial

Packaging :

Tray

Power - Output :

3dBm

Number of Functions :

1

Series :

--

Published :

2016

Base Product Number :

ATSAMB11

Serial Interfaces :

I2C, SPI, UART

Terminal Form :

NO LEAD

Operating Temperature :

-40°C~85°C

RF Family/Standard :

Bluetooth

Length :

10.541mm

Type :

TxRx + MCU

Terminal Pitch :

0.61mm

Product Status :

Obsolete

RoHS Status :

ROHS3 Compliant

Factory Lead Time :

14 Weeks

Telecom IC Type :

TELECOM CIRCUIT

Supply Voltage :

3.6V

GPIO :

23

HTS Code :

8542.39.00.01

Package Shape :

RECTANGULAR

JESD-30 Code :

R-XXMA-N35

Reach Compliance Code :

Compliant

Voltage - Supply :

1.8V~4.3V

Protocol :

Bluetooth v4.1

Width :

7.503mm

Modulation :

--

Terminal Position :

UNSPECIFIED

Height Seated (Max) :

1.868mm

Current - Transmitting :

3.2mA

Number of Terminations :

35

Surface Mount :

yes

Data Rate :

1 Mbps

Sensitivity :

-95dBm

Screening Level :

TS 16949

Package :

Tray

Package / Case :

39-SMD Module

Number of Terminals :

35
