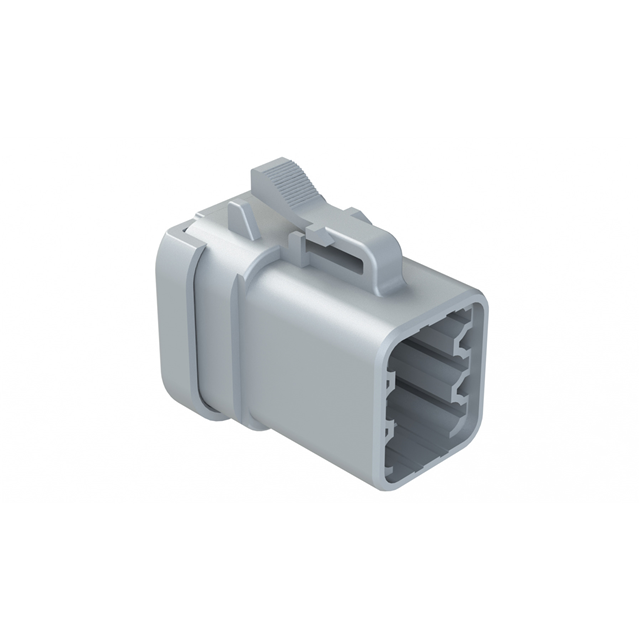

ATP06-6S-EC01

Manufacturer :

Amphenol Sine Systems

Product Category :

Rectangular Connector Housings

Housing Color :

Gray

IP Rating :

IP67

Maximum Operating Temperature :

+ 125 C

Mounting Style :

Cable Mount / Free Hanging

Product :

Connectors

Pitch :

-

Minimum Operating Temperature :

- 55 C

Series :

ATP

Package :

Box

Connector Type :

PLUG

Housing Material :

Thermoplastic (TP)

Current Rating :

25 A

Mounting Angle :

Straight

Features :

Sealed

Type :

6-Way

Body Orientation :

Straight

Color :

Gray

Current Rating (Max) :

25(A)

Row Spacing :

-

Gender :

Plug (RP - Female)

Product Status :

Active

Contact Gender :

Without Socket Contacts

Number of Rows :

2 Row

Product Depth (mm) :

25.4(mm)

Base Product Number :

ATP06

Note :

Contacts Not Included

Insulation Resistance :

1000 MOhms

Contact Material :

-

Packaging :

Box

Operating Temp Range :

-55C to 125C

Contact Plating :

-

Wire Gauge :

10-14(AWG)

Number of Contacts :

6(POS)

Number of Contact Rows :

2

Fastening Type :

Latch Lock

For Use With :

Amphenol ATP Series Size 12 Automotive Socket Contacts

Insulation :

Insulated

Termination Style :

-

Voltage Rating :

-

Tradename :

Structure +

Contact Type :

Socket

Mounting Type :

Free Hanging (In-Line)

RoHS :

Details

Accessory Type :

-

Number of Positions :

6 Position

Flammability Rating :

UL 94 V-0

Product Height (mm) :

36.5(mm)

Ingress Protection :

IP67

Contact Termination :

Crimp
