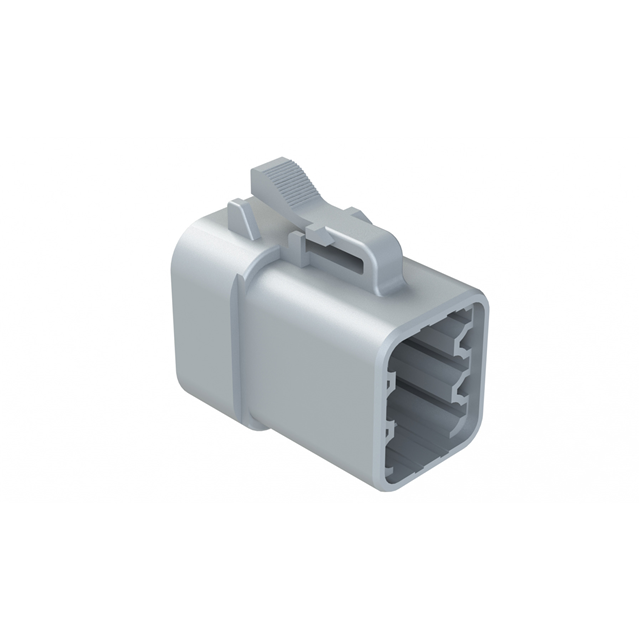

ATP06-6S

Manufacturer :

Amphenol Sine Systems

Product Category :

Rectangular Connector Housings

Body Orientation :

Straight

Number of Contacts :

6(POS)

Contact Material :

-

Base Product Number :

ATP06

Maximum Operating Temperature :

+ 125 C

Number of Rows :

2 Row

Product Height (mm) :

34.7(mm)

For Use With :

Amphenol ATP Series Size 12 Automotive Socket Contacts

Ingress Protection :

IP67

Mounting Angle :

Straight

Insulation :

Insulated

Contact Plating :

-

Housing Material :

Thermoplastic (TP)

Series :

ATP

Connector Type :

PLUG

Contact Type :

Socket

IP Rating :

IP67

Product Status :

Active

Tradename :

Structure +

Minimum Operating Temperature :

- 55 C

Note :

Contacts Not Included

Row Spacing :

-

Contact Gender :

Without Socket Contacts

Package :

Box

Termination Style :

-

Pitch :

-

Type :

6-Way

Operating Temp Range :

-55C to 125C

Mounting Type :

Free Hanging (In-Line)

Product Depth (mm) :

22.1(mm)

Housing Color :

Gray

Contact Termination :

Crimp

Fastening Type :

Latch Lock

RoHS :

Details

Number of Positions :

6 Position

Color :

Gray

Wire Gauge :

10-14(AWG)

Voltage Rating :

-

Current Rating :

25 A

Packaging :

Box

Mounting Style :

Cable Mount / Free Hanging

Insulation Resistance :

1000 MOhms

Flammability Rating :

UL 94 V-0

Features :

Sealed

Number of Contact Rows :

2

Current Rating (Max) :

25(A)

Accessory Type :

-

Product :

Connectors

Gender :

Plug (RP - Female)
