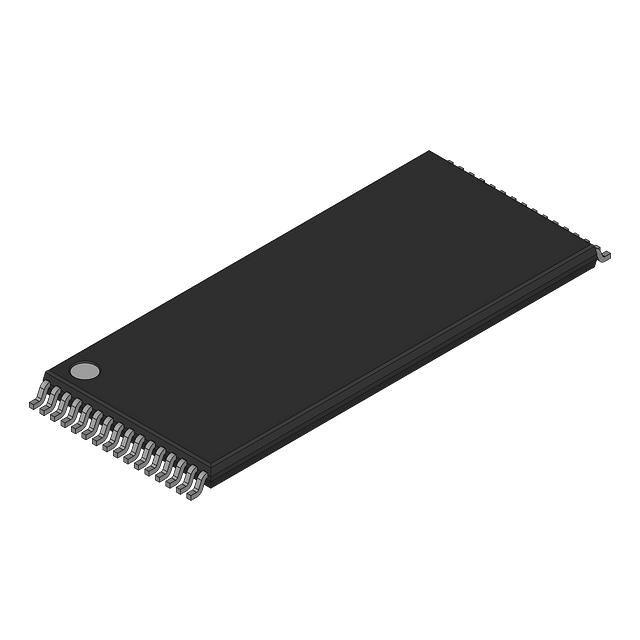

ATMEGA48A-CCU

Manufacturer :

Atmel (Microchip Technology)

Product Category :

Microcontrollers

Width :

4 mm

Core Processor :

AVR

Pbfree Code :

yes

Power Supplies :

2/5V

JESD-30 Code :

S-PBGA-B32

Mount :

Surface Mount

Speed :

20MHz

Operating Temperature :

-40°C~85°C TA

Package :

Tape and Reel (TR);Cut Tape (CT);Digi-Reel®;

Mounting Type :

Surface Mount

RAM Size :

512 x 8

DAC Channels :

No

Supply Voltage-Max (Vsup) :

5.5V

Series :

AVR® ATmega

Data Converter :

A/D 8x10b

Number of Terminals :

32

CPU Family :

AVR RISC

Supply Voltage :

5V

Published :

2015

Temperature Grade :

Industrial

Manufacturer :

Microchip Technology Inc

Contact Plating :

Gold

Surface Mount :

yes

Connectivity :

I2C, SPI, UART/USART

Base Product Number :

ATMEGA48

Seated Height-Max :

0.6 mm

Height Seated (Max) :

0.6mm

Number of Terminations :

32

Device Core :

AVR

Data Bus Width :

8B

Reach Compliance Code :

Compliant

Oscillator Type :

Internal

Package Shape :

Square

RoHS Status :

ROHS3 Compliant

Memory Size :

4kB

Peripherals :

Brown-out Detect/Reset, POR, PWM, WDT

Additional Feature :

ALSO OPERATES AT 2.7 V MINIMUM SUPPLY AT 10 MHZ AND 1.8 V MINIMUM SUPPLY AT 4 MHZ

ROM (words) :

2048

Terminal Form :

Ball

ROM Programmability :

Flash

EEPROM Size :

256 x 8

Terminal Position :

BOTTOM

Bit Size :

8

Voltage - Supply (Vcc/Vdd) :

1.8V~5.5V

Packaging :

Tape and Reel (TR)

Supply Voltage-Min (Vsup) :

4.5V

Number of I/O :

23

RAM (bytes) :

512

DMA Channels :

No

Product Status :

Active

Interface :

I2C, SPI, UART, USART

Terminal Pitch :

0.5mm

Core Size :

8-Bit

Number of Timers/Counters :

3

Watchdog Timer :

yes

Data Converters :

A/D 8x10b

Number of Pins :

32

Interfaces :

SPI/TWI/USART

Package / Case :

32-UFBGA

Moisture Sensitivity Level (MSL) :

3 (168 Hours)

Supplier Device Package :

32-UFBGA (4x4)

Number of I/O Lines :

23

Has ADC :

yes

Factory Lead Time :

19 Weeks

Qualification Status :

Not Qualified

Base Part Number :

ATMEGA48A

Program Memory Size :

4KB 2K x 16

Program Memory Type :

Flash

Length :

4mm

Supply Current-Max :

12 mA

Frequency :

20MHz

uPs/uCs/Peripheral ICs Type :

MICROCONTROLLER, RISC

PWM Channels :

yes
