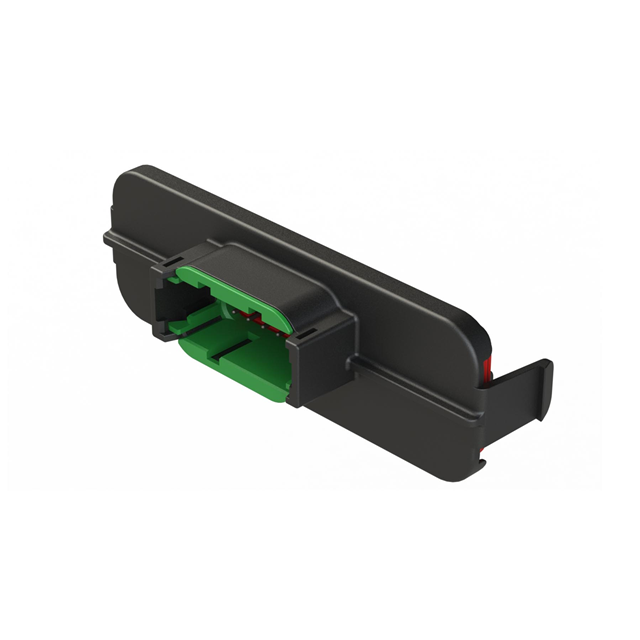

ATM13-12PC-R008
Or copy the link below:
- Mfr.Part #
- ATM13-12PC-R008
- Manufacturer
- Amphenol Sine Systems
- Package / Case
- Datasheet
- Download
- Description
- CONN HEADER R/A 12POS 4.2MM
- Stock
- 6
- In Stock ：
- 6
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Amphenol Sine Systems
- Product Category :
- Headers, Male Pins
- RoHS Status :
- ROHS3 Compliant
- Pitch - Mating :
- 0.165 4.20mm
- Insulation Material :
- Thermoplastic
- Ingress Protection :
- IP69K
- Contact Length - Post :
- 0.120 3.05mm
- Termination :
- Solder
- Contact Finish - Post :
- Tin
- Number of Positions :
- 12
- Insulation Height :
- 1.378 35.00mm
- Shrouding :
- Shrouded - 4 Wall
- Operating Temperature :
- -55°C~155°C
- Feature :
- Mounting Flange, Sealed
- Factory Lead Time :
- 12 Weeks
- Contact Material :
- COPPER ALLOY
- Row Spacing - Mating :
- 0.250 (6.35mm)
- Packaging :
- Bulk
- Style :
- Board to Cable/Wire
- Fastening Type :
- Latch Holder
- Number of Positions Loaded :
- All
- Contact Finish - Mating :
- Tin
- Mounting Type :
- Panel Mount, Snap-In; Through Hole, Right Angle
- Series :
- ARMORIPX™
- Contact Shape :
- Circular
- Insulation Color :
- Black
- Applications :
- Automotive, Industrial
- Contact Type :
- Male Pin
- Connector Type :
- Receptacle
- Number of Rows :
- 2
- Current Rating (Amps) :
- 7.5A
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Datasheets
- ATM13-12PC-R008
ATM13-12PC-R008 Documents
ARMORIPX™ Series 2-Row Receptacle Solder Copper Alloy Bulk Panel Mount, Snap-In; Through Hole, Right Angle Tin Thermoplastic 12-Position Board to Cable/Wire 1.378 35.00mm Height
ATM13-12PC-R008 Overview
Packaging is in the form of Receptacle.This device has a Panel Mount, Snap-In; Through Hole, Right Angle mounting type.An orange Bulk case is used to package the product.Specifically, it is one of the products in the ARMORIPX™ Series.There are a variety of possible applications for this device, including Automotive, Industrial.Several benefits come from the Mounting Flange, Sealed feature.Devices operate at -55°C~155°C operating temperatures.
ATM13-12PC-R008 Features
ARMORIPX™ series
ATM13-12PC-R008 Applications
There are a lot of Amphenol Sine Systems Corp
ATM13-12PC-R008 Rectangular Connectors applications.
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
