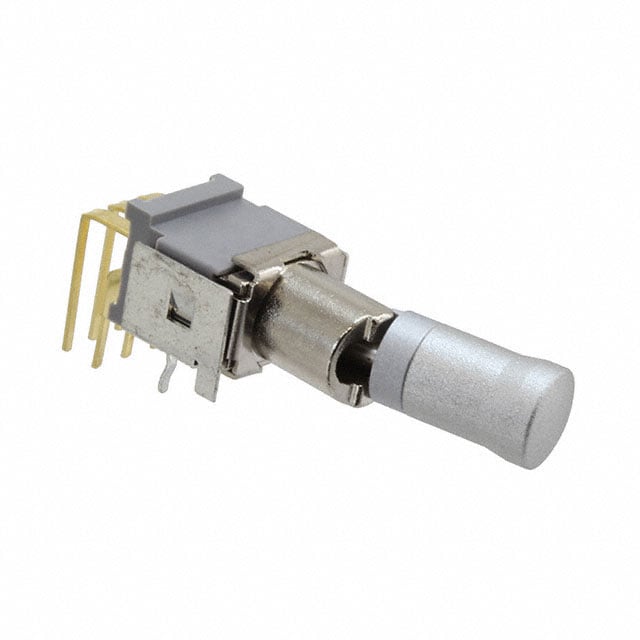

ATLE2N-5M3-Z
Or copy the link below:
- Mfr.Part #
- ATLE2N-5M3-Z
- Manufacturer
- Nidec Copal Electronics
- Package / Case
- Datasheet
- Download
- Description
- SWITCH TOGGLE DPDT 50MA 48V
- Stock
- 50
- In Stock ：
- 50
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Nidec Copal Electronics
- Product Category :
- Length - Termination :
- 0.13 inch
- Insulation Resistance :
- 500000000Ohm
- Termination Style :
- PC Pin
- Series :
- ATLE
- Contact Current(DC)-Max :
- 0.05A
- Contact Current(AC)-Max :
- 0.05A
- Switch Type :
- TOGGLE SWITCH
- Electrical Life :
- 10,000 Cycles
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Current Rating :
- 50mA
- Bushing Thread :
- Unthreaded
- Body Length or Diameter :
- 10.16mm
- Actuator Length :
- 11.50mm
- Reach Compliance Code :
- Unknown
- Actuator Type :
- Locking Lever
- Body Height :
- 13.7922mm
- Switch Function :
- On-On
- Illumination :
- Non-Illuminated
- Termination :
- PC Pin
- Circuit :
- DPDT
- Dielectric Withstanding Voltage :
- 500VAC V
- PCB Hole Count :
- 8
- Mount :
- Through Hole
- Contact (DC) Max Rating R Load :
- 0.05A@48VDC
- Voltage - Rated DC :
- 48V
- Mounting Type :
- Through Hole, Right Angle
- Contact (AC) Max Rating R Load :
- 0.05A@48VAC
- Factory Lead Time :
- 9 Weeks
- RoHS Status :
- ROHS3 Compliant
- Bushing Length :
- 0.217 inch
- Contact Resistance :
- 0.1mOhm
- Body Breadth :
- 8.2042 mm
- Published :
- 2016
- Packaging :
- Tray
- Current Rating (Amps) :
- 50mA AC/DC
- Operating Temperature :
- -20°C~85°C
- Voltage - Rated AC :
- 48V
- Datasheets
- ATLE2N-5M3-Z
