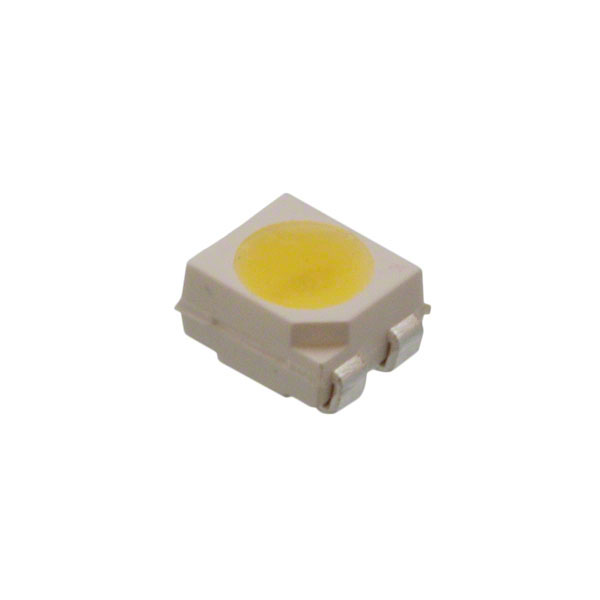

ASMT-SWBM-NU803

Manufacturer :

Broadcom

Product Category :

Number of Terminations :

4

RoHS Status :

RoHS Compliant

Mount :

Surface Mount

Optoelectronic Device Type :

SINGLE COLOR LED

ECCN Code :

EAR99

Number of Functions :

1

Power Dissipation :

215mW

Base Part Number :

ASMT-S*BM

Lens Transparency :

Diffused

Additional Feature :

High Reliability

Max Operating Temperature :

110°C

Lens Color :

Yellow

Lens Style :

Round with Flat Top

Moisture Sensitivity Level (MSL) :

2A (4 Weeks)

Lead Free :

Lead Free

Power Rating :

215mW

Color :

White

Package / Case :

4-PLCC

Published :

2007

Min Operating Temperature :

-40°C

Number of Elements :

1

Height :

2.1mm

Lens Size :

2.20mm Dia

Packaging :

Tape and Reel (TR)

Viewing Angle :

120°

Reverse Voltage :

4V

REACH SVHC :

No SVHC

Configuration :

Standard

Radiation Hardening :

No

Packing Method :

Tape and Reel

Mounting Type :

Surface Mount

Luminous Intensity :

1.1 cd

Size / Dimension :

3.20mm Lx2.80mm W

Number of Pins :

4

Millicandela Rating :

1100mcd

Forward Current :

30mA

Depth :

3.2mm

Voltage - Forward (Vf) (Typ) :

3.2V
