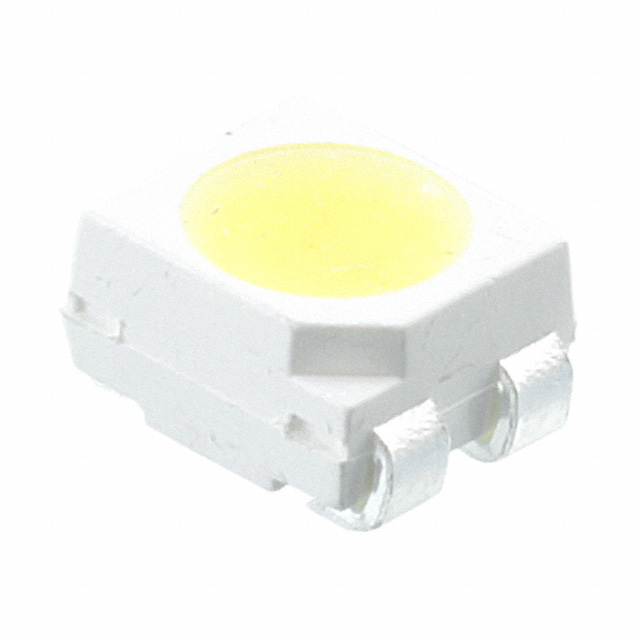

ASMT-QWBF-NKL0E

Manufacturer :

Broadcom

Product Category :

Mount :

Surface Mount

Lumens/Watt @ Current - Test :

94 lm/W

Flux @ 85°C, Current - Test :

42lm

Viewing Angle :

120°

Size / Dimension :

0.126Lx0.110W 3.20mmx2.80mm

Max Operating Temperature :

120°C

Optoelectronic Device Type :

SINGLE COLOR LED

Moisture Sensitivity Level (MSL) :

2 (1 Year)

Radiation Hardening :

No

Depth :

3.2mm

Luminous Flux :

49 lm

Forward Current :

150mA

Published :

2011

Max Power Dissipation :

570mW

REACH SVHC :

No SVHC

Number of Elements :

1

RoHS Status :

ROHS3 Compliant

ECCN Code :

EAR99

Forward Voltage-Max :

3.8V

Mounting Type :

Surface Mount

Contact Plating :

Silver

Packaging :

Tape and Reel (TR)

Lens Style :

Circular, Round

Package / Case :

4-PLCC

Thermal Resistance of Package :

50°C/W

Color :

White, Cool

Base Part Number :

ASMT-Q*BF

Height :

1.9mm

Illumination Color :

White

Height Seated (Max) :

0.083 2.10mm

Voltage - Forward (Vf) (Typ) :

3.3V

CCT (K) :

7250K (4500K ~ 10000K)

Number of Pins :

4

Power Dissipation :

570mW

Factory Lead Time :

18 Weeks

Max Current Rating :

150mA

Min Operating Temperature :

-40°C
