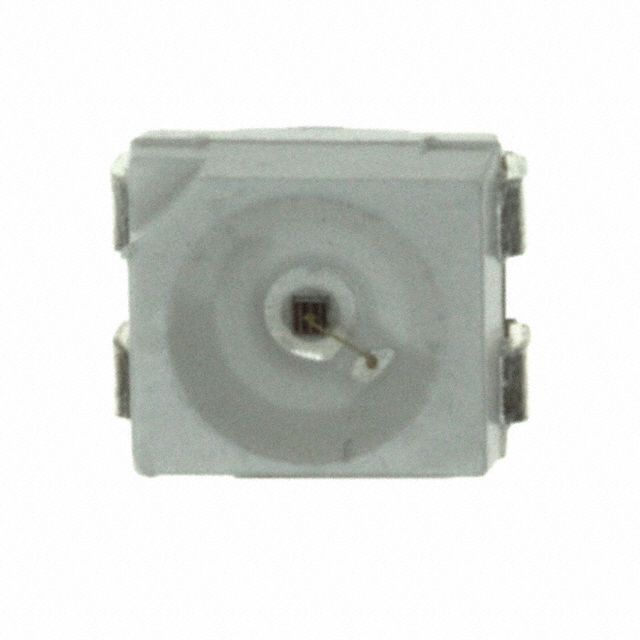

ASMT-QRB2-FCD0E

Manufacturer :

Broadcom

Product Category :

Voltage - Forward (Vf) (Typ) :

3.1V

Surface Mount :

yes

Packaging :

Tape and Reel (TR)

Current - Test :

150mA

Height Seated (Max) :

0.083 2.10mm

RoHS Status :

RoHS Compliant

JESD-609 Code :

e4

Operating Temperature (Min) :

-40°C

Mounting Type :

Surface Mount

Number of Terminations :

4

Temperature - Test :

25°C

Additional Feature :

High Reliability

Color :

Red

ECCN Code :

EAR99

Base Part Number :

ASMT-Q*B2

Shape :

Round

Published :

2010

Configuration :

Single

Reach Compliance Code :

Compliant

Package / Case :

4-PLCC

Packing Method :

TAPE AND REEL 7"

Wavelength :

628nm 620nm ~ 635nm

Overall Height :

1.75mm

HTS Code :

8541.40.20.00

Optoelectronic Device Type :

SINGLE COLOR LED

Reverse Voltage-Max :

5V

Operating Temperature (Max) :

110°C

Number of Functions :

1

Lumens/Watt @ Current - Test :

19 lm/W

Flux @ Current/Temperature - Test :

9lm 7lm~12lm

Terminal Finish :

Silver (Ag)

Thermal Resistance of Package :

60°C/W

Viewing Angle :

120°

Moisture Sensitivity Level (MSL) :

2A (4 Weeks)

Forward Current-Max :

0.15A

Size / Dimension :

0.126Lx0.110W 3.20mmx2.80mm

Forward Voltage-Max :

3.25V
