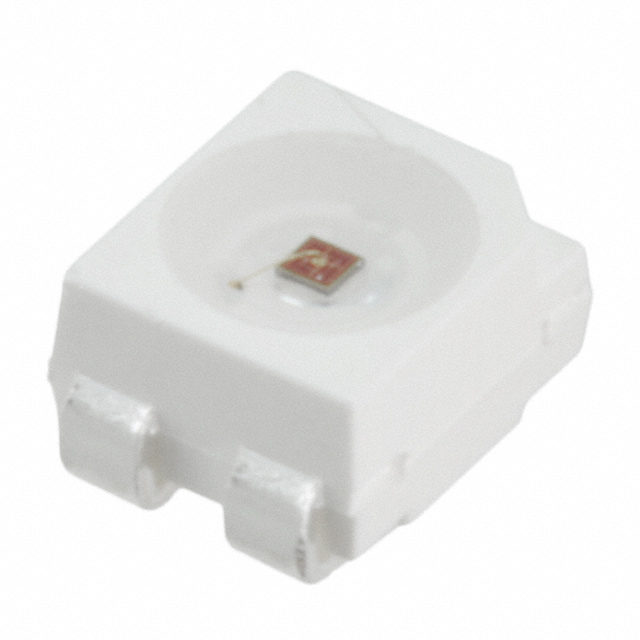

ASMT-QHBD-AFH0E

Manufacturer :

Broadcom

Product Category :

Size / Dimension :

0.126Lx0.110W 3.20mmx2.80mm

Optoelectronic Device Type :

SINGLE COLOR LED

ECCN Code :

EAR99

Number of Pins :

4

Published :

2010

Packing Method :

TAPE AND REEL 7"

Wavelength - Peak :

624.1 nm

Depth :

3.2mm

Max Power Dissipation :

450mW

Flux @ Current/Temperature - Test :

24lm 15lm~33lm

Viewing Angle :

120°

Lumens/Watt @ Current - Test :

64 lm/W

Configuration :

Single

Reverse Voltage :

5V

Additional Feature :

High Reliability

Illumination Color :

Orange

Lens Color :

Clear

Luminous Flux :

17.5 lm

Thermal Resistance of Package :

60°C/W

Forward Current :

150mA

Max Operating Temperature :

120°C

Packaging :

Tape and Reel (TR)

REACH SVHC :

No SVHC

Voltage - Forward (Vf) (Typ) :

2.5V

Mounting Type :

Surface Mount

Contact Plating :

Silver

Number of Functions :

1

Color :

Red

Package / Case :

4-PLCC

Power Rating :

500mW

Max Current Rating :

300mA

Mount :

Surface Mount

Temperature - Test :

25°C

Height Seated (Max) :

0.083 2.10mm

Luminous Intensity :

2.5 cd

RoHS Status :

ROHS3 Compliant

Lens Style :

Circular, Round

Base Part Number :

ASMT-Q*BD

Min Operating Temperature :

-40°C

Radiation Hardening :

No

Number of Terminations :

4

Power Dissipation :

450W

Factory Lead Time :

18 Weeks

Moisture Sensitivity Level (MSL) :

2A (4 Weeks)

Number of Elements :

1

Dominant Wavelength :

616.1 nm
