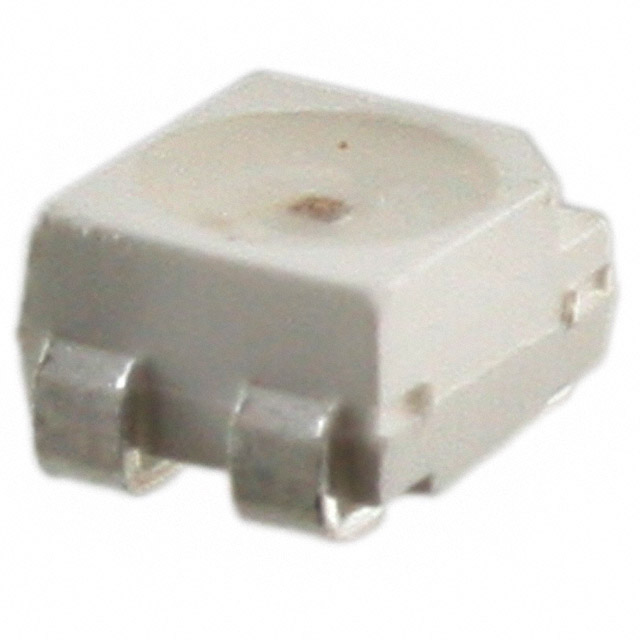

ASMT-QHB2-FEF0E

Manufacturer :

Broadcom

Product Category :

Power Dissipation :

470mW

Flux @ Current/Temperature - Test :

16lm 12lm~20lm

Published :

2010

Luminous Flux :

14 lm

Mounting Type :

Surface Mount

Wavelength :

618nm 611nm ~ 625nm

Reverse Voltage :

5V

Configuration :

Single

Luminous Intensity :

3.3 cd

Min Operating Temperature :

-40°C

Additional Feature :

High Reliability

Lens Style :

Circular, Diffused, Round

Packing Method :

TAPE AND REEL 7"

Viewing Angle :

120°

Max Operating Temperature :

110°C

Power Rating :

500mW

Number of Terminations :

4

Moisture Sensitivity Level (MSL) :

2A (4 Weeks)

REACH SVHC :

No SVHC

Number of Pins :

4

Dominant Wavelength :

594.5 nm

Base Part Number :

ASMT-Q*B2

Size / Dimension :

0.126Lx0.110W 3.20mmx2.80mm

Packaging :

Tape and Reel (TR)

Mount :

Surface Mount

Color :

Red

Package / Case :

4-PLCC

Lumens/Watt @ Current - Test :

40 lm/W

Illumination Color :

Orange

Max Current Rating :

150mA

Depth :

2.8mm

Radiation Hardening :

No

Lead Free :

Lead Free

Voltage - Forward (Vf) (Typ) :

2.7V

Temperature - Test :

25°C

Thermal Resistance of Package :

60°C/W

Number of Functions :

1

Optoelectronic Device Type :

SINGLE COLOR LED

Lens Color :

Clear

RoHS Status :

RoHS Compliant

ECCN Code :

EAR99

Terminal Finish :

Silver (Ag)

Forward Current :

150mA

Max Power Dissipation :

470mW

JESD-609 Code :

e4

Height Seated (Max) :

0.083 2.10mm

Number of Elements :

1
