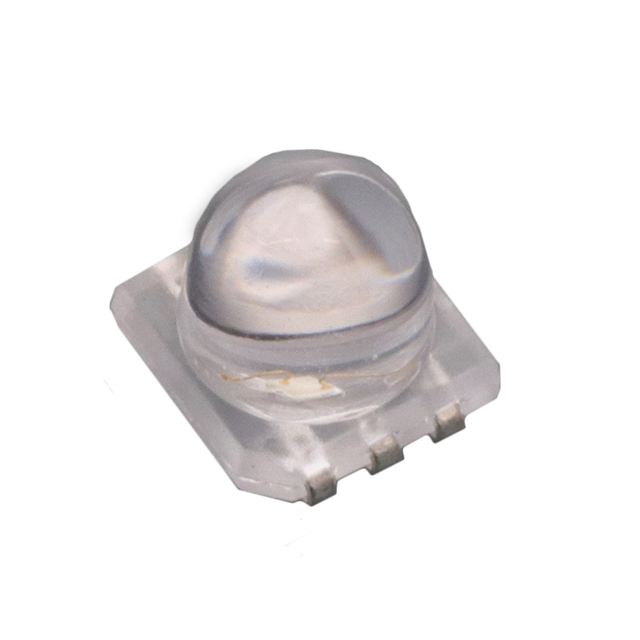

ASMT-FG10-NFJ00

Manufacturer :

Broadcom

Product Category :

Number of Functions :

1

Min Operating Temperature :

-40°C

Number of Pins :

6

Configuration :

Standard

Forward Current :

20mA

Published :

2014

Lens Color :

Colorless

Lens Size :

4.32mm Dia

Forward Voltage-Max :

3.9V

REACH SVHC :

No SVHC

Wavelength - Peak :

525nm

Contact Plating :

Tin

Wavelength - Dominant :

530nm

JESD-609 Code :

e3

Color :

Green

Lens Style :

Round with Domed Top

Size / Dimension :

4.80mm Lx4.80mm W

Luminous Intensity :

41 cd

Package / Case :

6-SMD, J-Lead

Voltage - Forward (Vf) (Typ) :

3.3V

Height :

5.43mm

Depth :

4.8mm

Number of Elements :

1

Packaging :

Tape and Reel (TR)

Factory Lead Time :

13 Weeks

Mount :

Surface Mount

Lens Transparency :

Clear

Moisture Sensitivity Level (MSL) :

3 (168 Hours)

Reverse Voltage :

5V

Max Power Dissipation :

80mW

Power Rating :

80mW

Millicandela Rating :

57000mcd

Packing Method :

Tape and Reel

Mounting Type :

Surface Mount

RoHS Status :

ROHS3 Compliant

ECCN Code :

EAR99

Base Part Number :

ASMT-FG10

Max Operating Temperature :

85°C

Number of Terminations :

6

Optoelectronic Device Type :

SINGLE COLOR LED

Viewing Angle :

11°

Power Dissipation :

80mW
