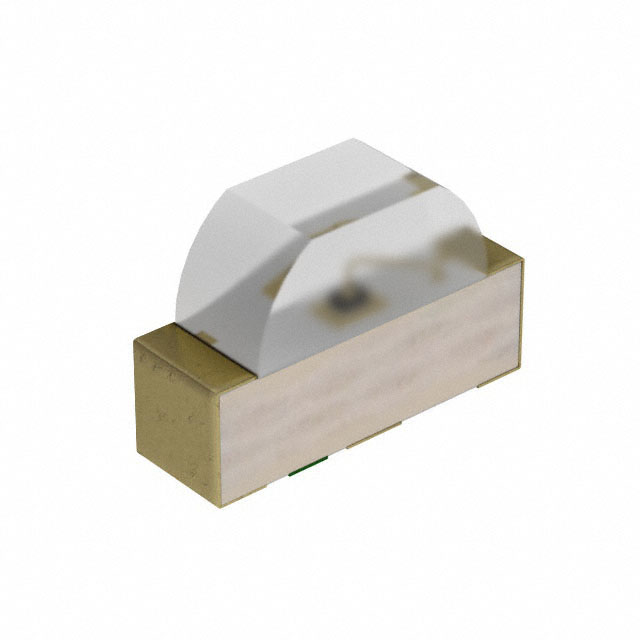

ASMT-CW00

Manufacturer :

Broadcom

Product Category :

Packaging :

Tape and Reel (TR)

Additional Feature :

SUPPORTS INFRARED

Forward Current :

5mA

Number of LEDs :

1

Color :

White

Lens Color :

Colorless

Max Power Dissipation :

32mW

Size / Dimension :

1.60mm Lx1.00mm W

Min Operating Temperature :

-40°C

Reverse Voltage :

5V

Mounting Type :

Surface Mount, Right Angle

ECCN Code :

EAR99

Optoelectronic Device Type :

SINGLE COLOR LED

Voltage - Forward (Vf) (Typ) :

2.85V

Number of Pins :

2

Lens Transparency :

Clear

Published :

2007

Height :

450μm

Number of Functions :

1

Number of Terminations :

2

Base Part Number :

ASMT-C*00

Luminous Intensity :

35 mcd

REACH SVHC :

No SVHC

Factory Lead Time :

13 Weeks

RoHS Status :

ROHS3 Compliant

Power Rating :

32mW

Moisture Sensitivity Level (MSL) :

2A (4 Weeks)

Lens Style :

Rectangle with Domed Top

Lens Size :

1.20mmx0.50mm

Package / Case :

2-SMD, No Lead

Packing Method :

TAPE AND REEL 7"

Max Operating Temperature :

85°C

Mount :

Surface Mount

Viewing Angle :

150°

Millicandela Rating :

35mcd

Shape :

RECTANGULAR

Configuration :

Standard
