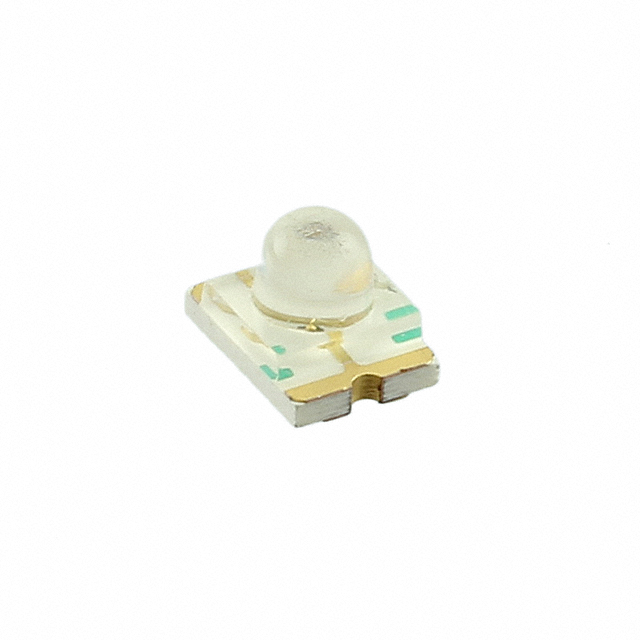

ASMT-BA20-AS000

Manufacturer :

Broadcom

Product Category :

Radiation Hardening :

No

Max Operating Temperature :

85°C

Forward Voltage-Max :

2V

Packaging :

Tape and Reel (TR)

Configuration :

Standard

Height :

2.4mm

Color :

Amber

Wavelength - Dominant :

590nm

Published :

2000

Luminous Intensity :

750 mcd

Forward Current :

20mA

ECCN Code :

EAR99

Wavelength - Peak :

592nm

Package / Case :

1209 (3224 Metric)

Case Code (Metric) :

3224

Min Operating Temperature :

-40°C

Lens Style :

Round with Domed Top

Reverse Voltage :

5V

Factory Lead Time :

9 Weeks

Case Code (Imperial) :

1209

Mount :

Surface Mount

RoHS Status :

ROHS3 Compliant

Size / Dimension :

3.20mm Lx2.40mm W

Base Part Number :

ASMT-BA20

Lens Transparency :

Clear

Voltage - Forward (Vf) (Typ) :

2V

Number of Elements :

1

Moisture Sensitivity Level (MSL) :

2A (4 Weeks)

REACH SVHC :

No SVHC

Viewing Angle :

15°

Number of Pins :

2

Illumination Color :

Orange

Lens Size :

1.80mm Dia

Mounting Type :

Surface Mount

Depth :

2.4mm
