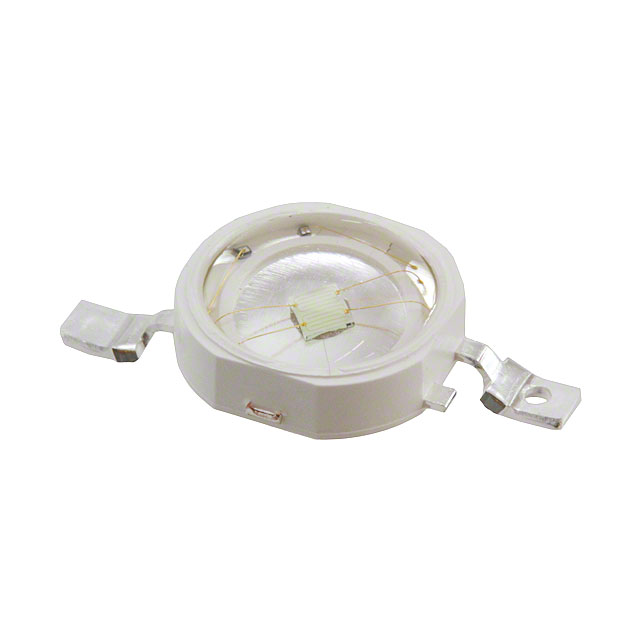

ASMT-AC00-NST00

Manufacturer :

Broadcom

Product Category :

Voltage - Forward (Vf) (Typ) :

3V

Published :

2008

Mounting Type :

Surface Mount

Forward Voltage-Max :

3.8V

Lens Style :

Circular

Power Rating :

1W

Number of Pins :

2

Mount :

Surface Mount

Viewing Angle :

140°

Size / Dimension :

0.315Dia 8.00mm

Reverse Voltage :

5V

Min Operating Temperature :

-40°C

Luminous Flux :

58 lm

Wavelength :

505nm 490nm ~ 520nm

Packaging :

Tube

Current - Test :

350mA

Flux @ Current/Temperature - Test :

76lm 52lm~100lm

Dominant Wavelength :

500 nm

Color :

Cyan

RoHS Status :

RoHS Compliant

Lumens/Watt @ Current - Test :

72 lm/W

Moisture Sensitivity Level (MSL) :

2A (4 Weeks)

Number of Elements :

1

Power Dissipation :

1.98W

Max Current Rating :

500mA

Lens Color :

Clear

Height Seated (Max) :

0.165 4.20mm

Illumination Color :

Green

Temperature - Test :

25°C

Max Operating Temperature :

120°C

Thermal Resistance of Package :

10°C/W

Package / Case :

2-SMD, Gull Wing Exposed Pad

Forward Current :

500mA

Optoelectronic Device Type :

SINGLE COLOR LED

REACH SVHC :

No SVHC

Radiation Hardening :

No

Depth :

7.4mm

Base Part Number :

ASMT-AC00
