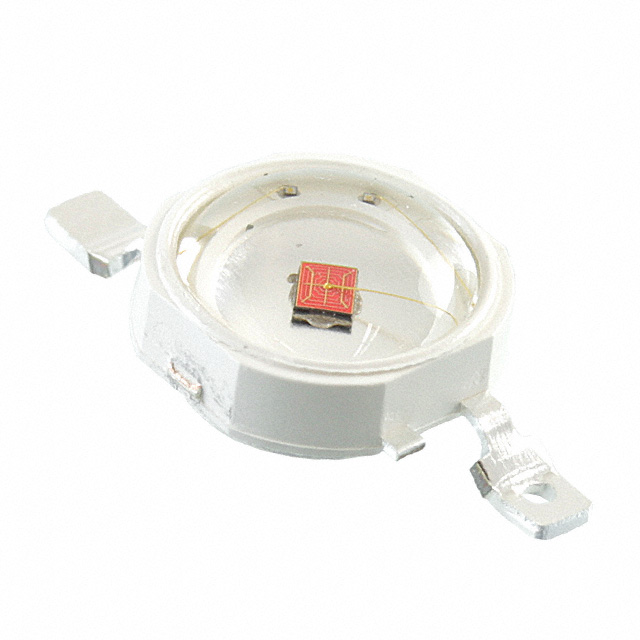

ASMT-AA00-ARS00

Manufacturer :

Broadcom

Product Category :

Current - Test :

350mA

Series :

ASMT-Ax00

Packaging :

Tube

Mount :

Surface Mount

JESD-609 Code :

e4

Temperature - Test :

25°C

Power Rating :

1W

Published :

2012

Lumens/Watt @ Current - Test :

68 lm/W

Max Power Dissipation :

1.83W

Forward Current :

500mA

Number of Terminations :

2

Configuration :

Single

Lens Style :

Circular

Min Operating Temperature :

-40°C

Base Part Number :

ASMT-AA00

Number of Elements :

1

Luminous Flux :

50 lm

Max Current Rating :

500mA

Voltage - Forward (Vf) (Typ) :

2.1V

Shape :

Round

Height Seated (Max) :

0.165 4.20mm

ECCN Code :

EAR99

Mounting Type :

Surface Mount

Lens Color :

Clear

Viewing Angle :

140°

RoHS Status :

ROHS3 Compliant

Number of Functions :

1

Moisture Sensitivity Level (MSL) :

2A (4 Weeks)

Radiation Hardening :

No

Thermal Resistance of Package :

10°C/W

Max Operating Temperature :

115°C

Number of Pins :

2

Color :

Amber

Factory Lead Time :

16 Weeks

Illumination Color :

Orange

Flux @ Current/Temperature - Test :

50lm Typ

Power Dissipation :

1.83W

Package / Case :

2-SMD, Gull Wing Exposed Pad

Contact Plating :

Silver

Depth :

7.4mm

Size / Dimension :

0.315Dia 8.00mm

Wavelength :

592nm 587nm ~ 597nm

Dominant Wavelength :

590 nm

Optoelectronic Device Type :

SINGLE COLOR LED

Reverse Voltage :

5V
