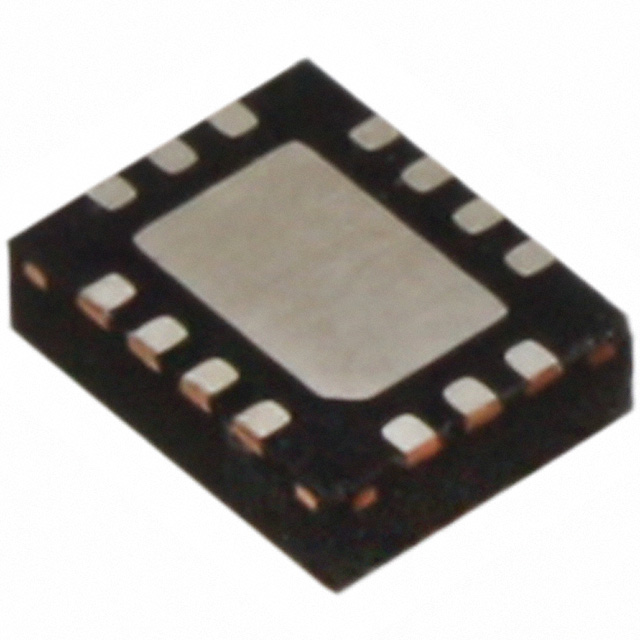

ASEMDLP-LR

Manufacturer :

Abracon

Product Category :

Pin Configurable/Selectable Oscillators

Maximum Operating Temperature :

+ 85 C

Product Category :

Standard Clock Oscillators

Function :

Enable/Disable

Series :

ASEMDLP, Pure Silicon™

Termination :

SMD/SMT

Base Resonator :

MEMS

Frequency :

400MHz

Width :

2.4892mm

Operating Supply Voltage :

3.6V

RoHS Status :

RoHS Compliant

Current - Supply (Max) :

89mA Typ

Minimum Operating Temperature :

- 40 C

Length :

3.2004mm

Size / Dimension :

0.126Lx0.098W 3.20mmx2.50mm

RoHS :

Details

Voltage - Supply :

2.25V~3.6V

Product Type :

MEMS Oscillators

Published :

2011

Package / Case :

14-VFQFN Exposed Pad

Brand :

ABRACON

Number of Pins :

14

Product :

Dual Output

Height :

0.035 0.90mm

Max Frequency :

460MHz

Package :

Bulk

Max Operating Temperature :

85°C

Operating Temperature :

-40°C~85°C

Manufacturer :

ABRACON

Factory Lead Time :

15 Weeks

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Max Supply Current :

89mA

REACH SVHC :

No SVHC

Type :

XO (Standard)

Product Status :

Active

Mounting Style :

SMD/SMT

Min Operating Temperature :

-40°C

Frequency Stability :

±25ppm

Frequency - Output 2 :

25MHz 100MHz 125MHz 156.25MHz 200MHz

Frequency - Output 1 :

100MHz 106.25MHz 125MHz 156.25MHz 400MHz

Output Format :

LVPECL

Termination Style :

SMD/SMT

Packaging :

Tube

Output :

LVPECL

Subcategory :

Oscillators

Current - Supply (Disable) (Max) :

23mA

Other Names :

535-9429 ASEMDLPLR

Min Supply Voltage :

2.25V
