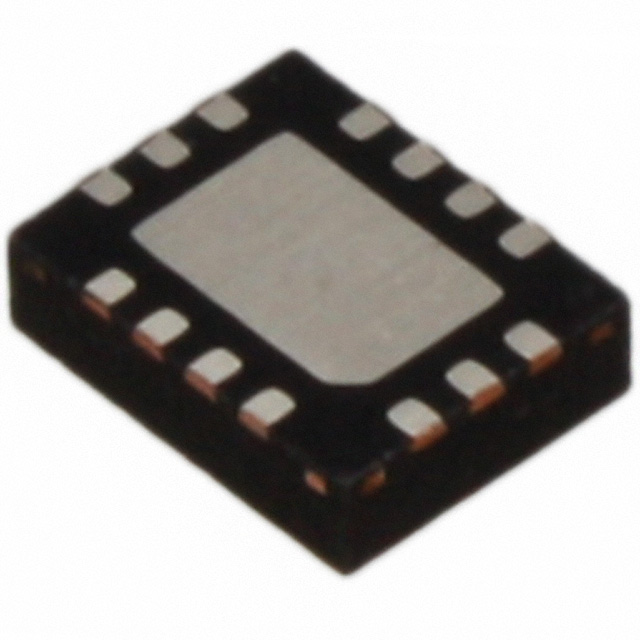

ASEMDLC-LR

Manufacturer :

Abracon

Product Category :

Pin Configurable/Selectable Oscillators

Load Capacitance :

2 pF

Subcategory :

Oscillators

Operating Temperature :

-40°C~85°C

Termination :

SMD/SMT

Function :

Enable/Disable

Length :

3.2004mm

Product :

Dual Output

Factory Lead Time :

15 Weeks

Voltage - Supply :

2.25V~3.6V

Base Resonator :

MEMS

Frequency - Output 1 :

74.25MHz 100MHz 125MHz 148.5MHz 150MHz 156.25MHz

Package / Case :

14-VFQFN Exposed Pad

Max Supply Current :

49mA

Frequency - Output 2 :

25MHz 50MHz 74.25MHz 75MHz 125MHz

Maximum Operating Temperature :

+ 85 C

Type :

XO (Standard)

Output :

CMOS, LVDS

Operating Supply Voltage :

3.6V

Output Format :

LVDS-CMOS

Product Type :

MEMS Oscillators

Mounting Style :

SMD/SMT

Size / Dimension :

0.126Lx0.098W 3.20mmx2.50mm

Width :

2.4892mm

Max Operating Temperature :

85°C

Frequency :

100MHz

Packaging :

Tube

Current - Supply (Disable) (Max) :

23mA

Height :

0.035 0.90mm

Number of Pins :

14

RoHS :

Details

Series :

ASEMDLC, Pure Silicon™

Termination Style :

SMD/SMT

Published :

2011

Product Status :

Active

Package :

Bulk

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Frequency Stability :

±25ppm

Min Operating Temperature :

-40°C

RoHS Status :

RoHS Compliant

Minimum Operating Temperature :

- 40 C

Min Supply Voltage :

2.25V

Brand :

ABRACON

Manufacturer :

ABRACON

Product Category :

Standard Clock Oscillators

Current - Supply (Max) :

49mA Typ

REACH SVHC :

No SVHC
